11 Line Lever Lock (93 & 94 Functions)
Open the original PDF document
View PDF| BACKSETS | ||
|---|---|---|
| 2 3/4* | 3 3/4" | 5 * |
| STANDARD | 23 PREFIX | 25 PREFIX |

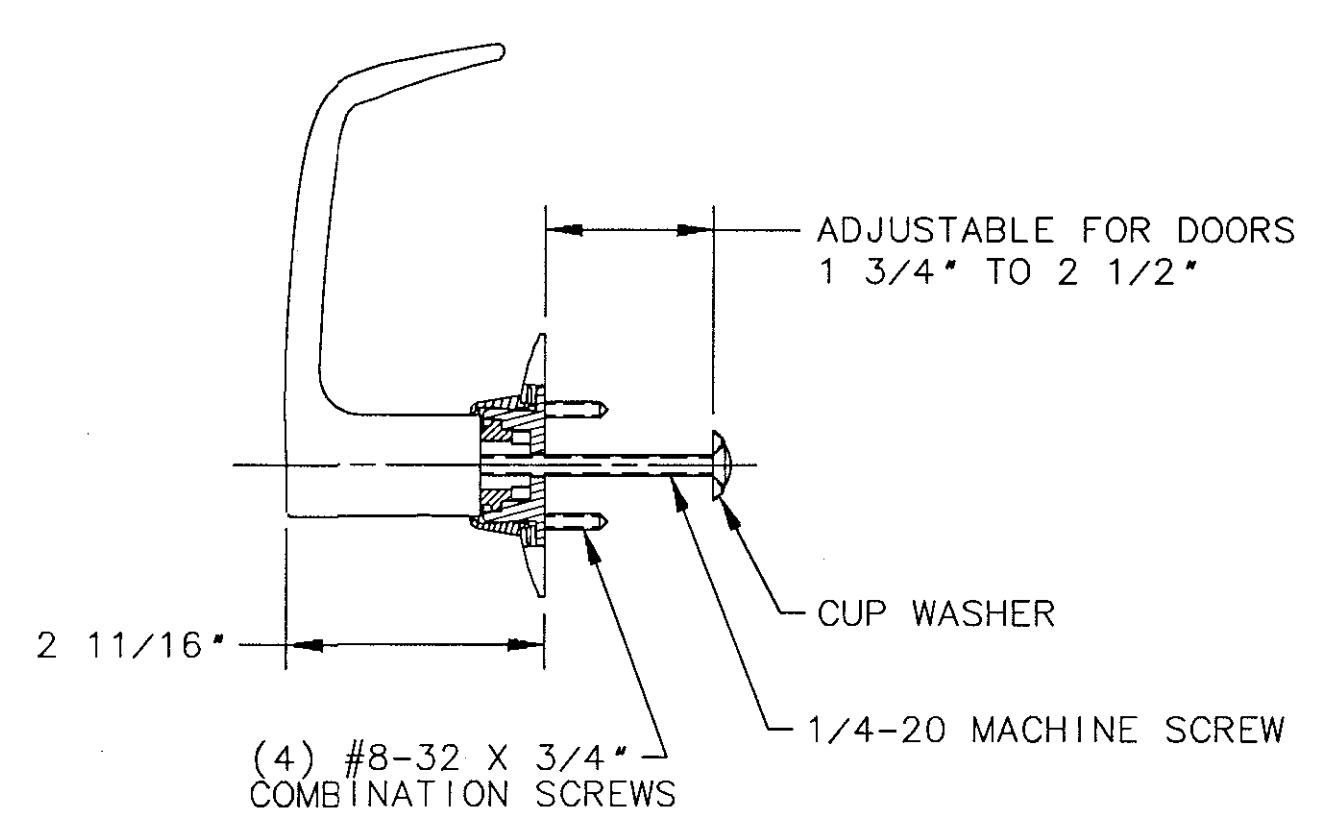

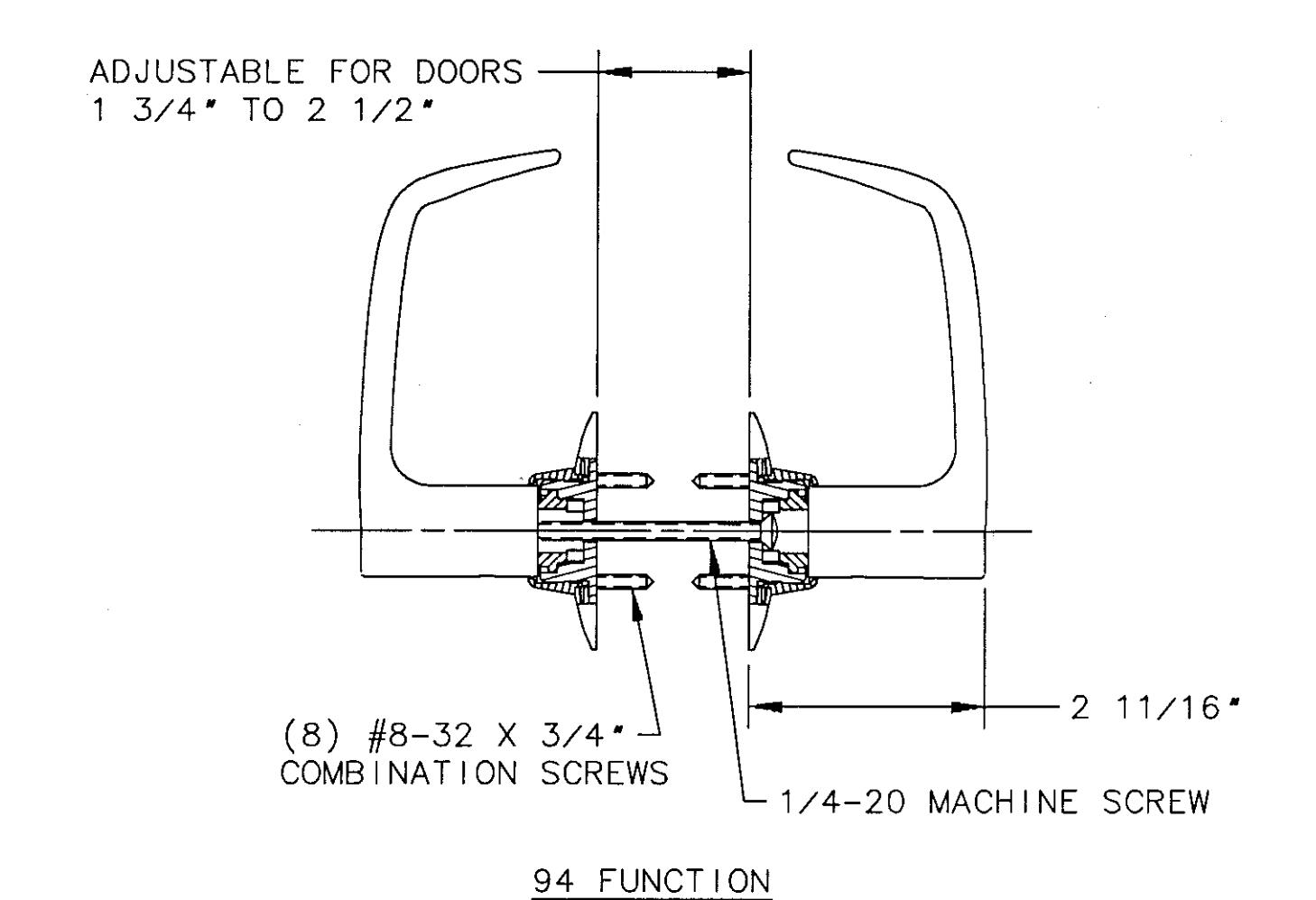

93 FUNCTION
NOTES:
- 1. ROSE AND LEVER DIMENSIONS VARY BY DESIGN ROSES AVAILABLE ARE 2 3/4", DIA 3 1/2" DIA AND 3 1/8" SQUARE.
- 2. METAL DOOR REINFORCEMENT TO BE AT LEAST EQUIVALENT TO THAT SHOWN ON ANSI A115.2.

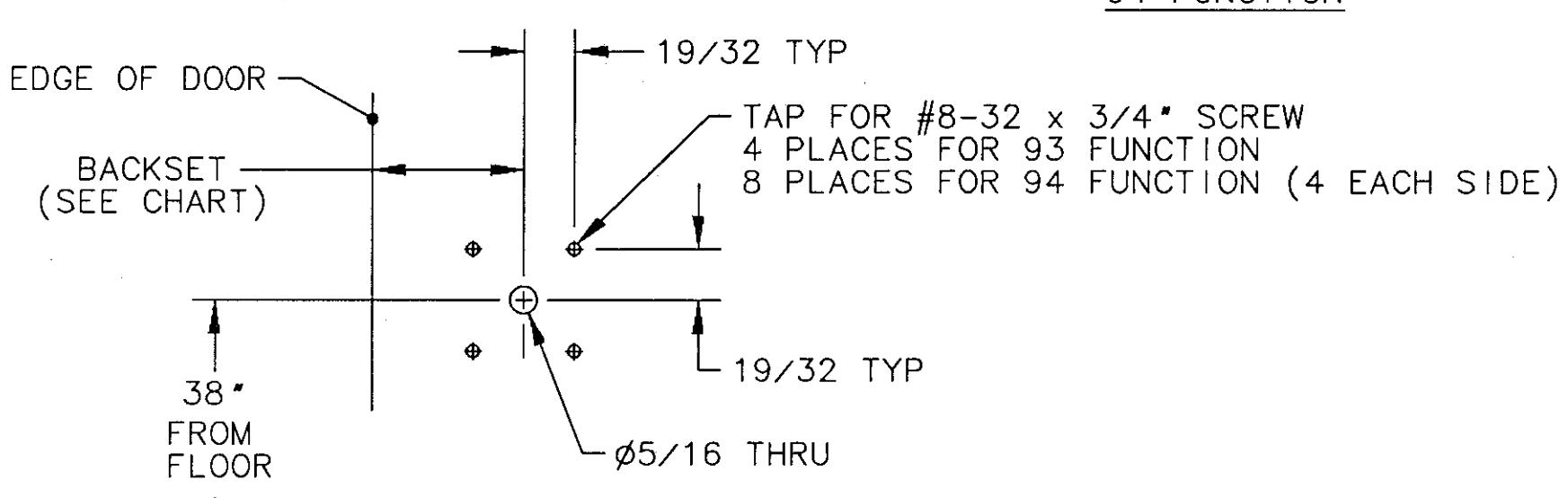

SUGGESTED DETAIL OF DOOR PREPARATION
SARGENT® Manufacturing Company 100 Sargent Drive New Haven, CT 08511
11 LINE T-ZONE LEVER LOCK 93 & 94 FUNCTION
RELEASE DATE MARCH 01 TEMPLATE NO.
4539A
