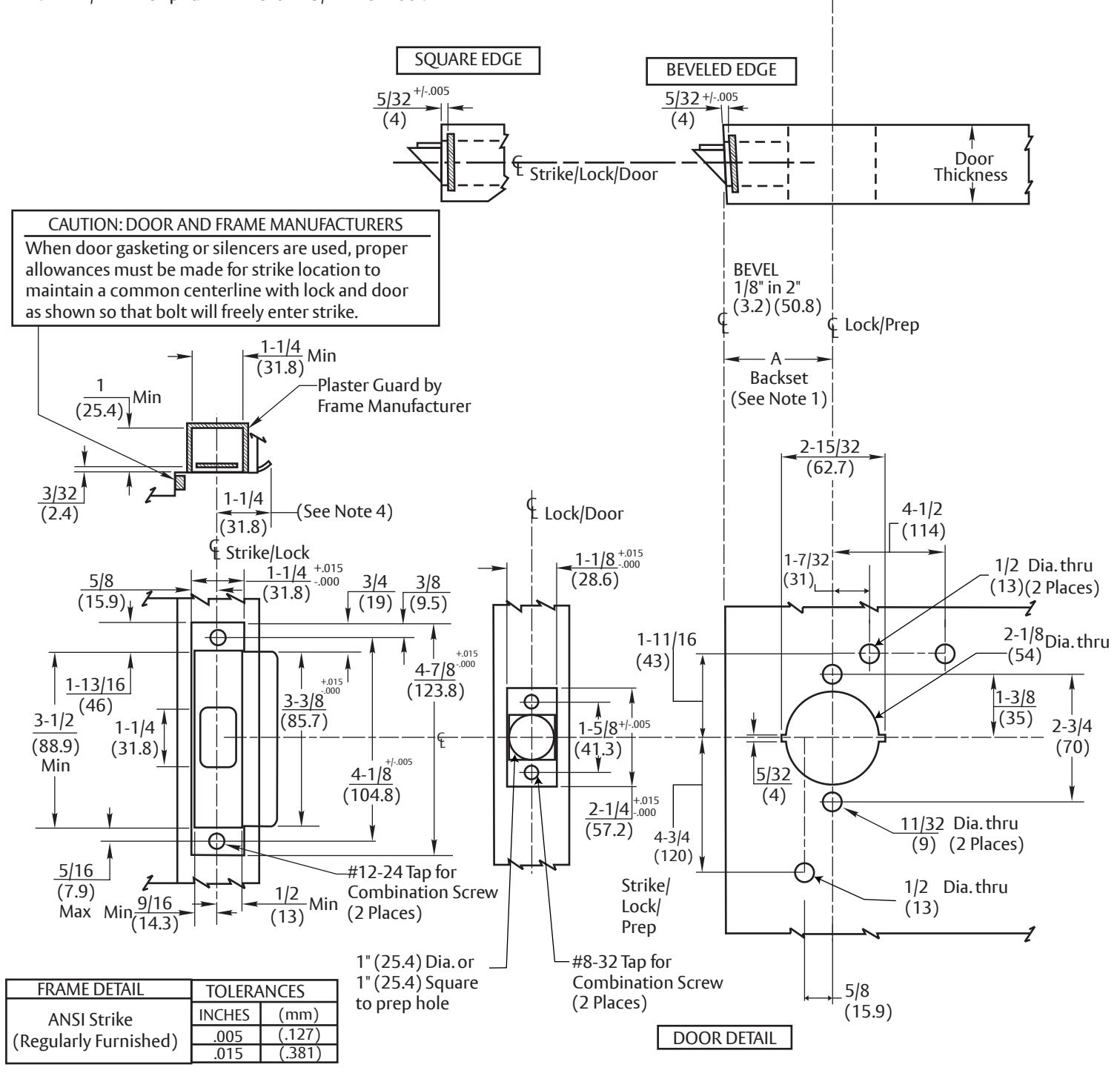

10X Line w BHW Trim Template

Notes:

• 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. Door prep with 2-3/4" (70) backset meets ANSI/BHMA A156.115 for steel doors and A156.115W for wood doors plus through bolt holes shown.
• 3. Dimensions given in inches and (mm).
• 4. 1-1/4" strike lip suits frame for 1-3/4" thick door.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL. OR METHOD OF CONSTRUCTION.

10X Line Cylindrical Lock with BHW Trim All Functions

SARGENT

ASSA ABLOY

SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 4753 SHEET 1 of 1 03/23
