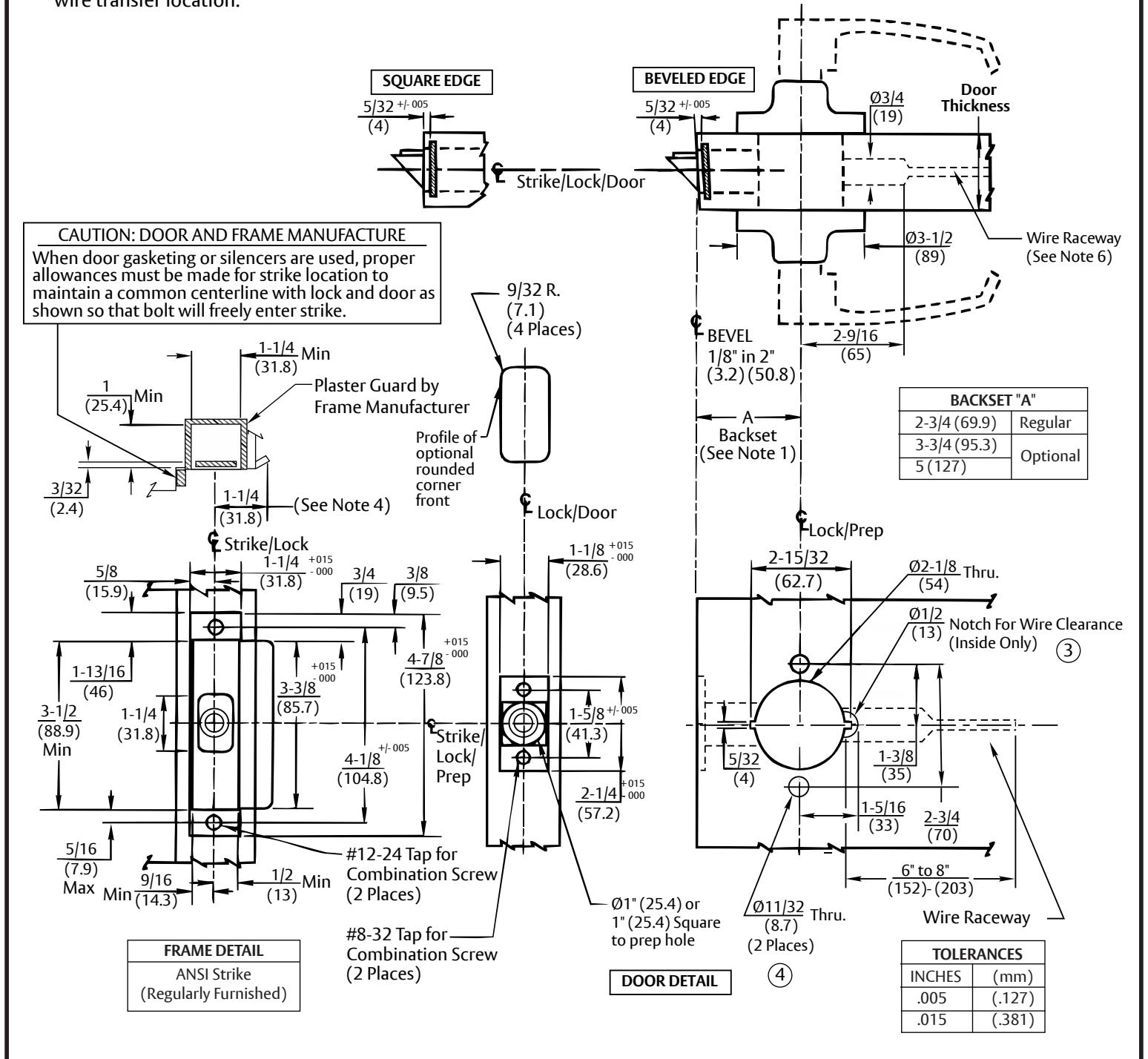

10X Line Electrified Lever Template

Open the original PDF document

View PDF

Notes:

  • 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
  • 2. Door prep with 2-3/4" (69.9) backset meets ANSI standards A156.115 for steel and wood doors plus through bolt holes shown.
  • 3. Dimensions given in inches and (mm).
  • 4. 1-1/4" strike lip suits frame for 1-3/4" thick door. Lip will vary for other door thicknesses.
  • 5. Door prep will vary for 3/4" (19) latch assembly. Refer to template A8294 for details.
  • 6. Door manufacturer to provide Ø3/8" (9.5) wire raceway from lock prep to hinge edge wire transfer location.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL OR METHOD OF CONSTRUCTION

10X Line Electrified Lever Lockset

SARGENT

ASSA ABLOY

SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER 4756 SHEET 1 01/23
