10X Line
Open the original PDF document
View PDF

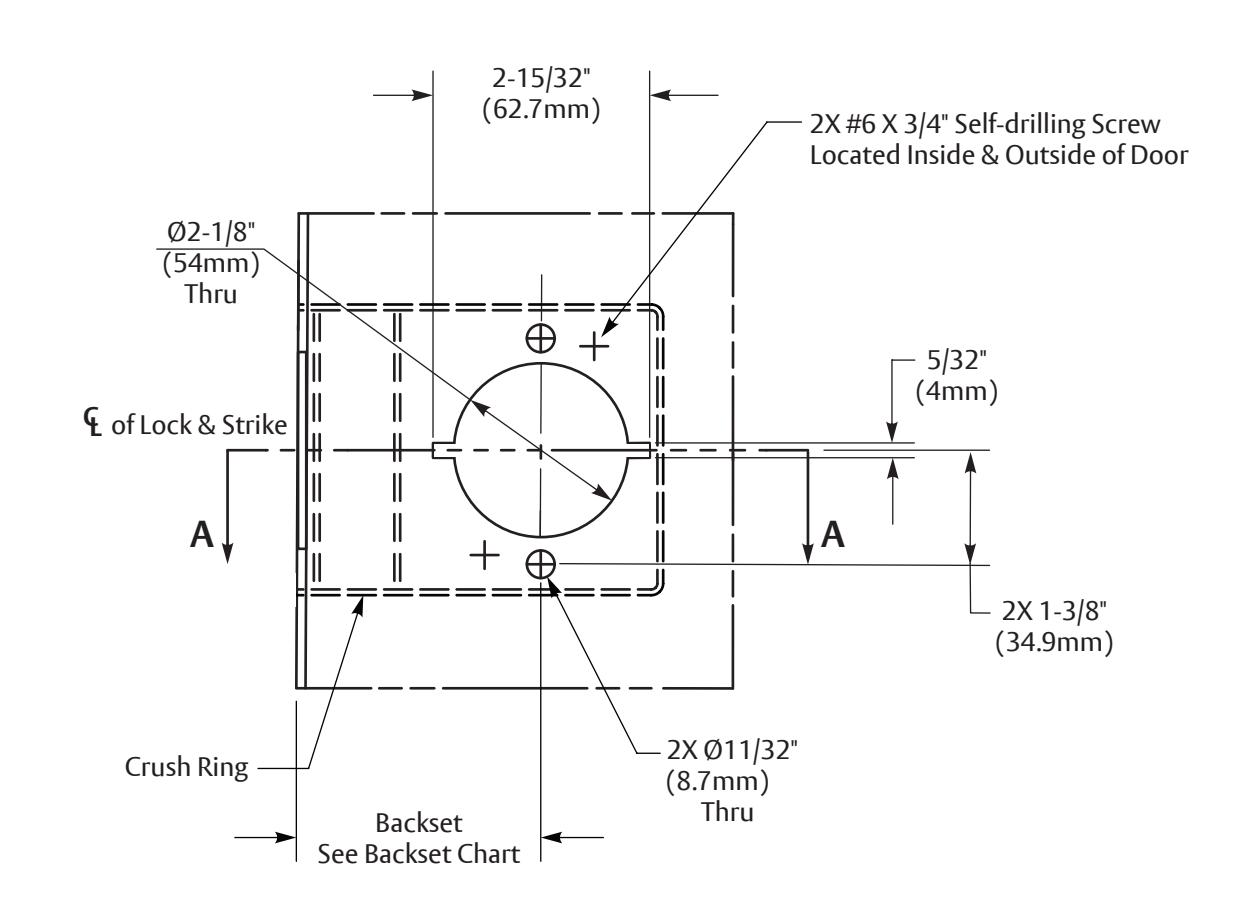

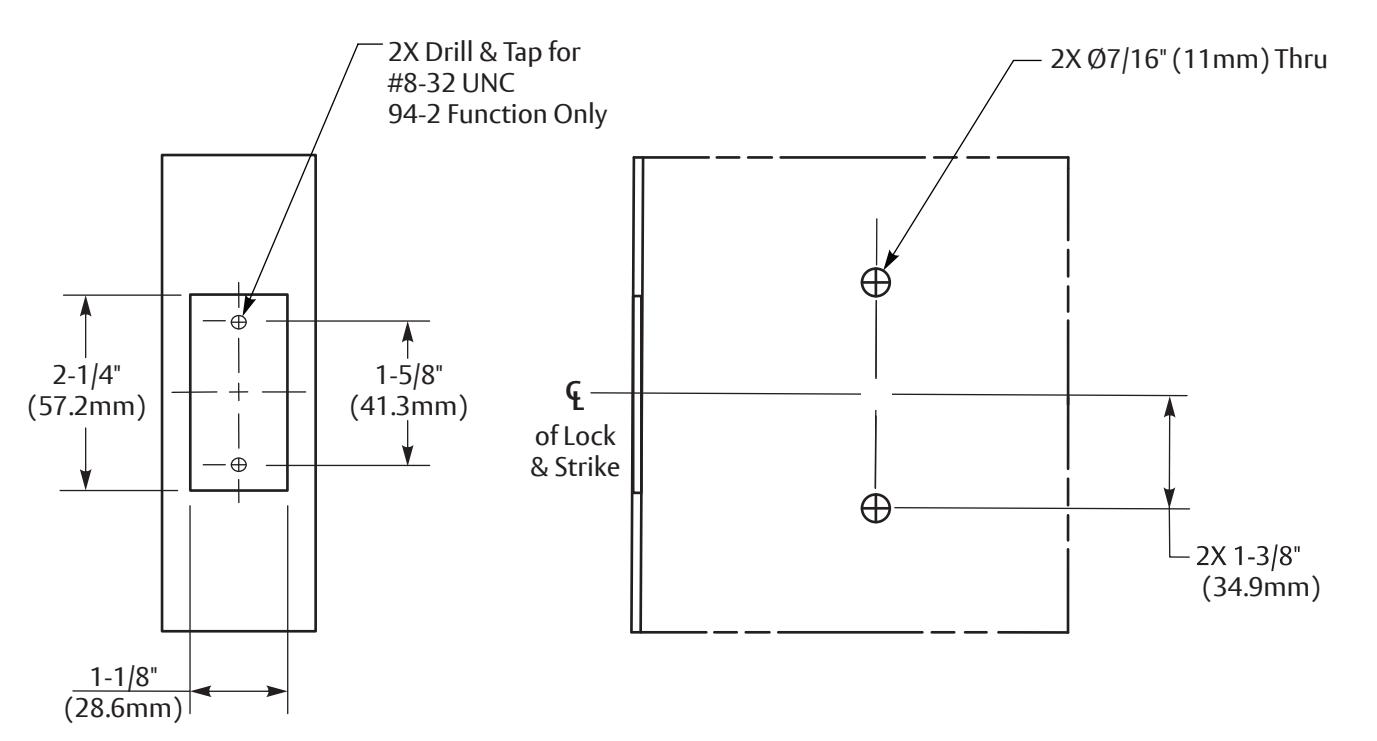

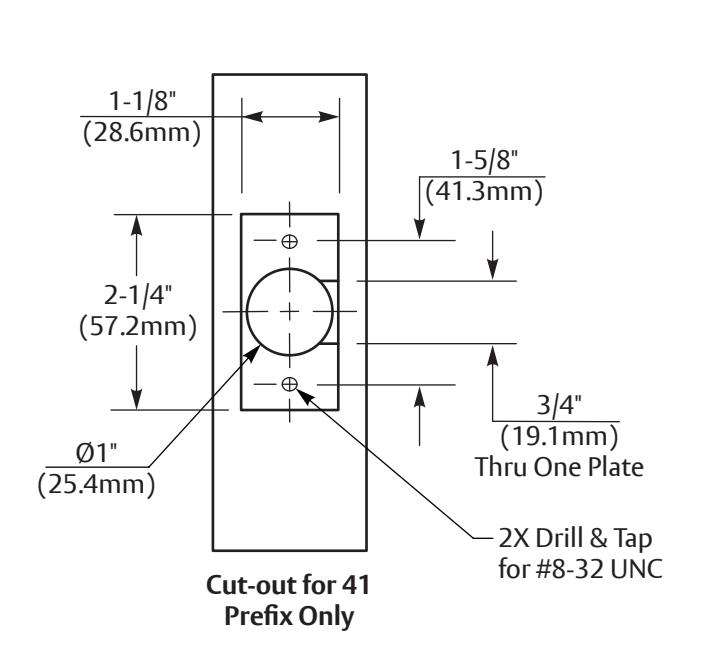

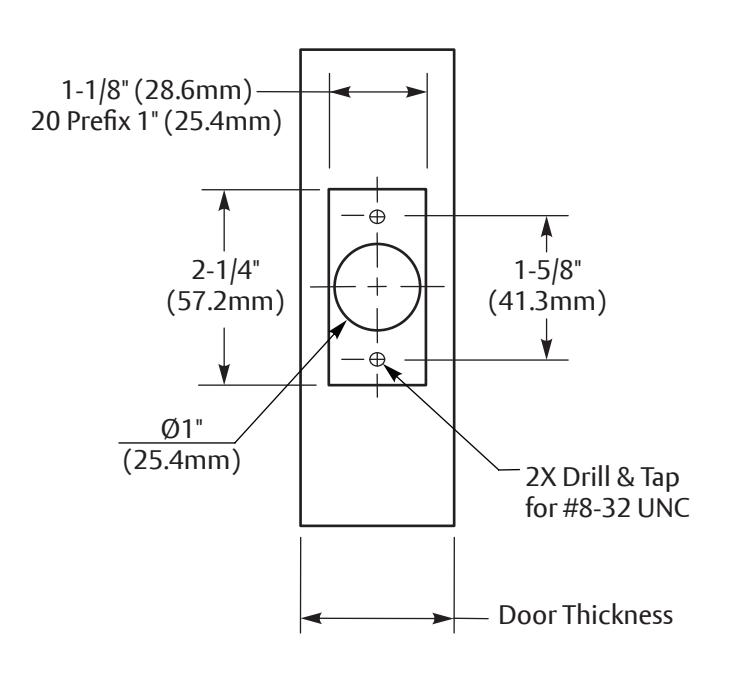

93/94 Functions Door Preparation

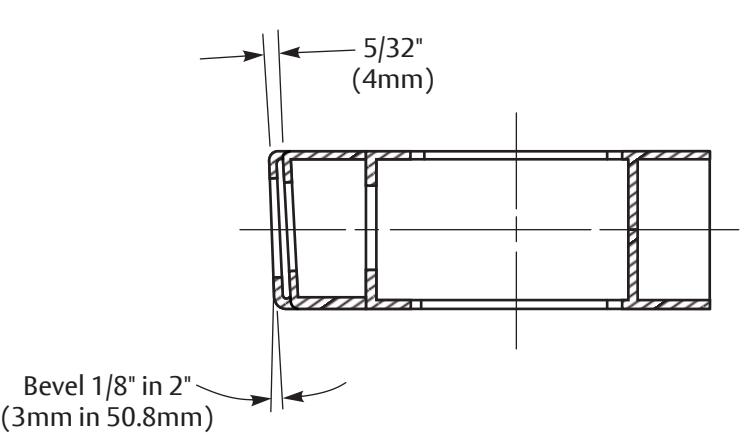

Section A-A
Copyright © 2022 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
10X Line Bored Lock TEMP. NO.
A8294 RELEASE DATE 12/22
