NOTES:

TOLERANCE ALL DIMENSIONS ±.015. FOR LOCKBODY PREP SEE TEMPLATE NO. 4375-1A PROVIDE AREA TO BE FREE OF OBSTRUCTIONS FOR WIRE HARNESS THROUGH DOOR. FOR ELECTROLYNX APPLICATIONS, REFER TO McKINNEY TRANSFER DEVICE CATALOG. CONSULT WITH POWER TRANSFER DEVICE MANUFACTURER FOR DOOR AND FRAME TEMPLATE DETAILS. PROVIDE OPENING IN CRUSH RING TO ALLOW ACCESS TO Ø3/8" RACEWAY.

SARGENT

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511

ASSA ABLOY

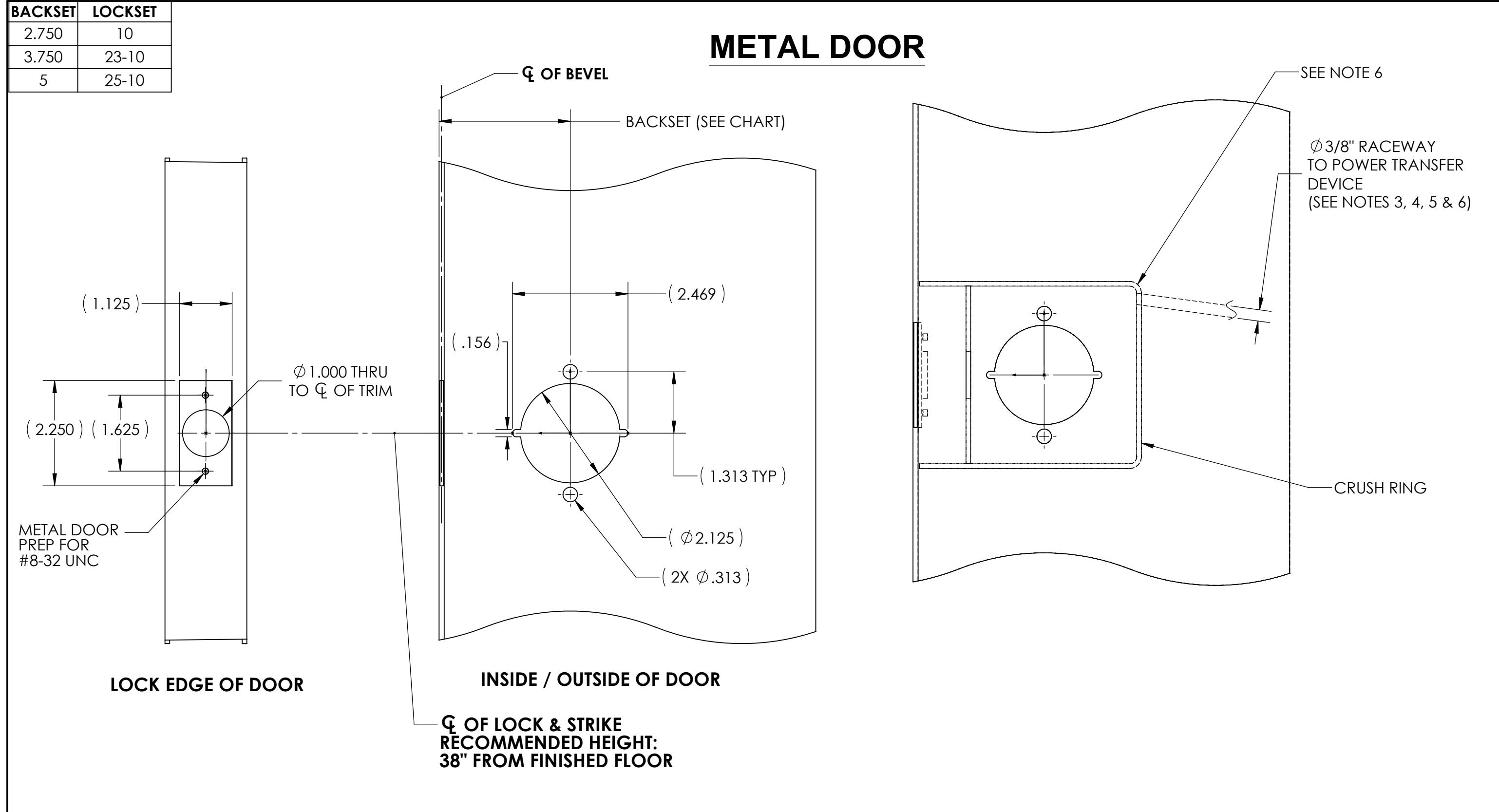

10-LINE BORED-IN LOCK (METAL) DOOR MANUFACTURER TEMPLATE FOR SOLENOID FUNCTIONS (2-3/4", 3-3/4" & 5" BACKSETS)

RELEASE DATE

04-JUNE-2010

TEMPLATE NO. 4409-1 - D

LOCK EDGE OF DOOR

INSIDE / OUTSIDE OF DOOR

NOTES:

• TOLERANCE ALL DIMENSIONS ±.015. FOR LOCKBODY PREP SEE TEMPLATE NO. 4375-1A

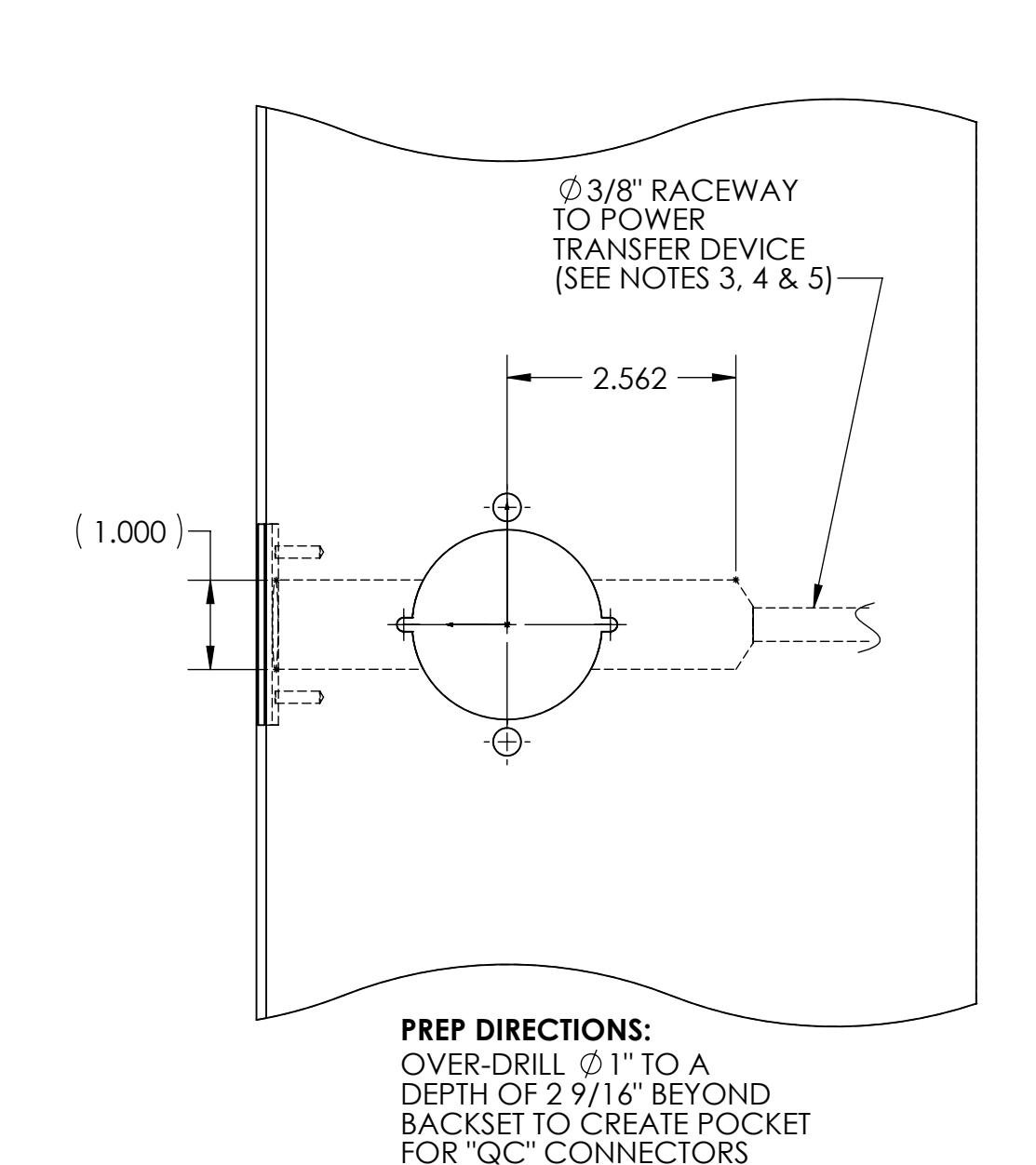

• 3. PROVIDE AREA TO BE FREE OF OBSTRUCTIONS FOR WIRE HARNESS THROUGH DOOR. 4. FOR ELECTROLYNX APPLICATIONS, REFER TO MCKINNEY TRANSFER DEVICE CATALOG. 5. CONSULT WITH POWER TRANSFER DEVICE MANUFACTURER FOR DOOR AND FRAME TEMPLATE DETAILS.

SARGENT

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511

ASSA ABLOY

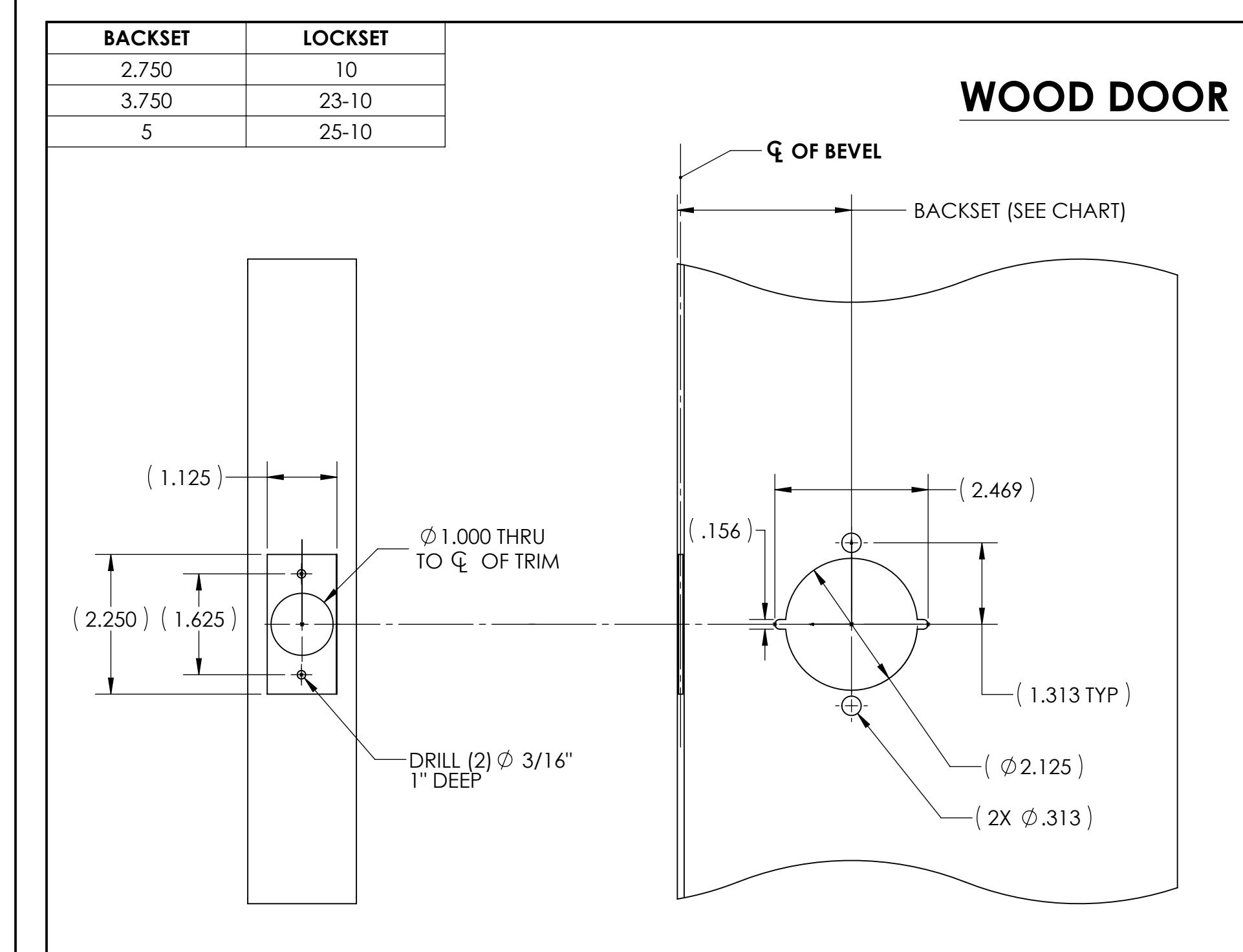

10-LINE BORED-IN LOCK (WOOD) DOOR MANUFACTURER TEMPLATE FOR SOLENOID FUNCTIONS (2-3/4", 3-3/4" & 5" BACKSETS)

RELEASE DATE

04-JUNE-2010

TEMPLATE NO. 4409-1 - D
