106 & 113 Auxiliary Control for 12-WD8600 Concealed

SARGENT & COMPANY

NEW HAVEN, CONN. 06511

4433 A

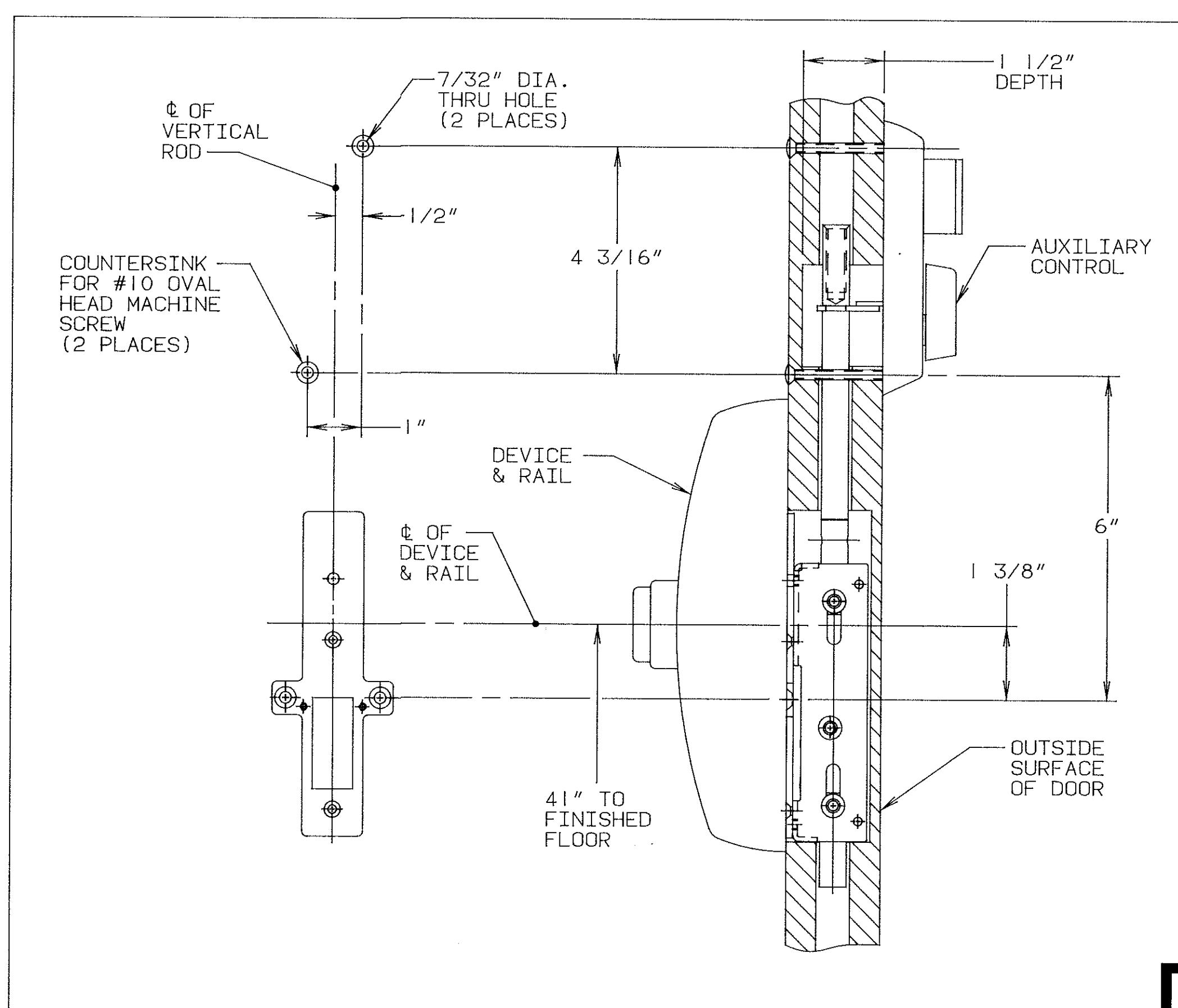

TEMPLATE: FOR 106 & 113 AUXILIARY CONTROL FOR USE WITH WD-12-8600 CONCEALED VERTICAL ROD EXIT DEVICE

RELEASE DATE 29 OCT 93 TEMPLET NO.

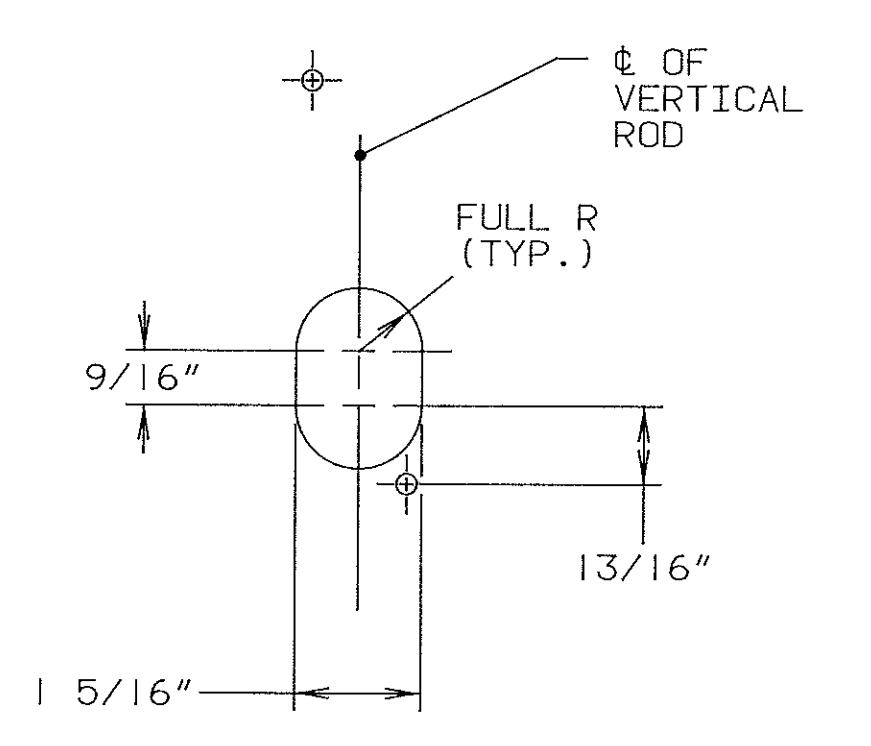

2-LABOVE DOOR PREPARATION IDENTICAL FOR BOTH (L.H.R.B. & R.H.R.B.) DOORS. FOR ADDITIONAL DOOR PREPARATIONS SEE APPROPRIATE INSIDE TRIM TEMPLATE.
