101 Series Annunciators

101-1AK

101-4AM

101-PAM

Compatible with all ExitCheck® systems, the 101 Series Annunicators provide door status at a remote location such as a nurse's station, guard station or office. The tri-color LED provides precise delay mode status.

SPECIFICATIONS

Faceplate	20 Gauge Stainless Steel
Voltage	20 mA @ 12/24VDC
LED	Tri-Color Green (Secure), Amber (Alarm/Door Locked), Red (Alarm/Door Unlocked)
Weight	1.5 lbs

0	MODELS
l	101-1A	Single Door Annunicator
101-4AM		Four Door Annunicator
	101-1AK	Single Door Annunicator with Key Control
101-PAM		Single Door Annunicator with Push Switch
	101-SP	External 15 Watt Speaker
101-SPSN		Remote Annunicator with Speaker & Siren

PRODUCT SKU SAMPLE: 101-SPSN

1| SPECIFY MODEL

Model	1 Gang	2 Gang	Tri-Color LED	Audiable Alarm	Description

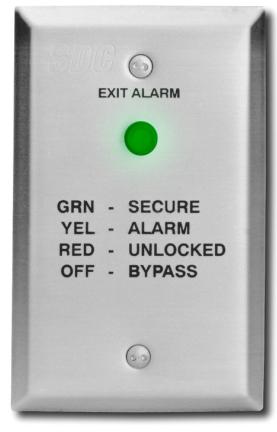

101-1A	X		X	X	Remote or local single door annunciator

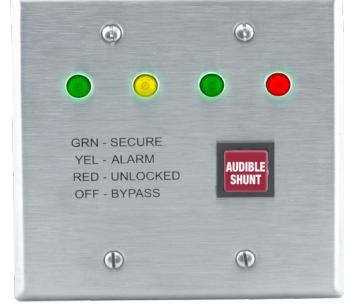

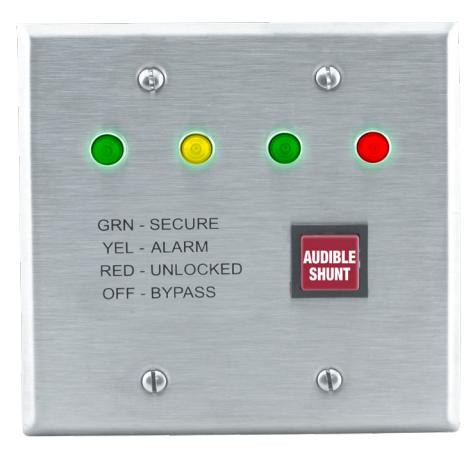

101-4AM		X	4 LEDs	X	Remote four door annunicator with audible alarm mute button

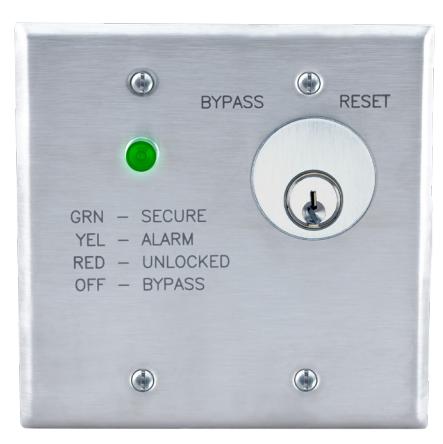

101-1AK		X	X	X	Remote or local single door annunicator with 2 function key swtich for on/off and reset. Accepts standard 1-1/8" to 1-1/4" Mortise key cylinder (Mor tise key cylinder not included).

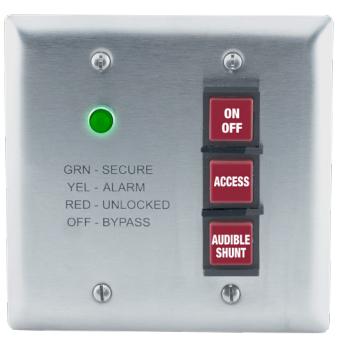

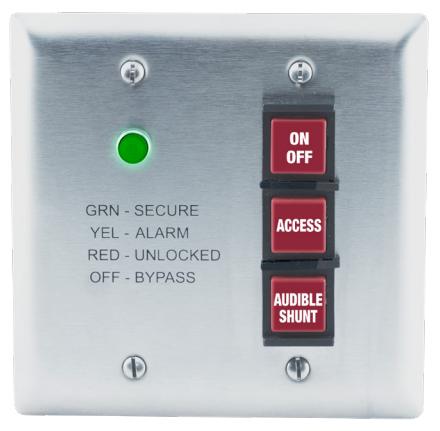

101-PAM		X	X	X	Remote single door annunciator with 3 push button switches for momentary access. On/off and audible mute button (Recommended for remote instatllation only).
101-SP	External 15 watt speaker connects directly to 1511S or 1511T for enhanced decibels onsite or remote voice message annuniciation. Speaker driver may be provided by others for extreme decibel requirements.

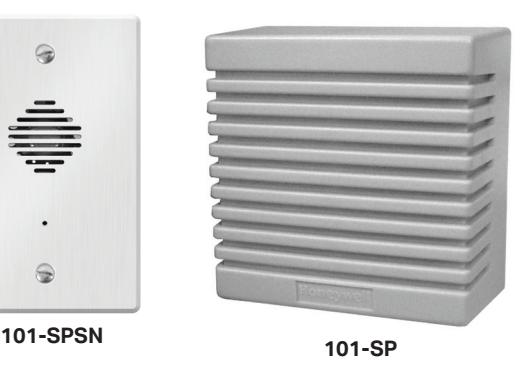

101-SPSN	X				Remote annunciator with speaker and 80db tone. Duplicates ExitCheck 101-DE/KDE alternating voice message and tone.
					Note: This is for Delayed Egress Controllers ONLY. Not for use with 1511S

101-1A 101-4AM 101-PAM 101-1AK

CYLINDER OPTION

CYL-6KDQ 6 pin, 1-1/8" Mortise

Cylinder, Keyed different,

626 Dull Chrome

CYL-6KAQ 6 pin, 1-1/8" Mortise Cyl-

inder, Keyed alike, 626 Dull Chrome
