101 ExitCheck® Wall Mount Delayed Egress - NFPA 101 Locking Arrangements Distributor GKK

Proprietary Verbal Exit Instructions with Alarm Tone and 3/4" Digital Countdown Display

STANDARD FEATURES INCLUDE: 12/24VDC voltage sensing input, delay electronics packaged on a 3-gang wall plate for recessed wall mounting or surface wall mounting with optional junction box. Features include: std. 15 or 30 second switchable exit delay (NA), 1 or 2 second nuisance delay. Keypad for violation reset, momentary bypass and on-off; Voice Annunciation and digital countdown display with door open indicator. Status and remote control inputs are standard.

12VDC / 24VDC @ 200 mA Max.

Doors WITH latch assemblies are sensor activated and do not require power transfer or trigger switch in exit device. Where preferred a trigger switch may be added to the exit device for manual activation in lieu of door movement activation.

Doors WITHOUT latches require a non-latching Request-to-Exit Bar PSB560 Sure Exit® or MSB550 Switch Bar (see pages 79 - 80). Also compatible with standard EMLocks (see page 7.)

ISC Expo

A STE EXIT CHECK*

101-DE

DELAYED EGRESS CONTROLLER (1 PER OPENING, SINGLE OR PAIRS)

LIST

101-DE Wall mount controller with keypad control and reset, 200 mA @ 12/24 VDC - NA standard 881.00

101-KDE Wall mount controller with both key switch and keypad control and reset, 200 mA @ 12/24 VDC 998.00 order with optional Mortise Cylinder

CYL-6KDQ 6 pin, 1.125" Mortise Cylinder, Keyed Different add 49.00 CYL-6KAQ 6 pin, 1.125" Mortise Cylinder, Keyed Alike add 49.00

Optional Add-On:

Specify NA, NC, ND, NH, BC, BD, BH - see codes and description on page 18 If no Code is specified - NA is the SDC STANDARD OPERATIONS Mode for this product

RRX Reset on REX - No Charge when ordered WITH a 101-DE/KDE. Allows the REX input to reset after an unauthorized egress alarm. Not available for NC

operation. Replacement Chip (if ordered separately from 101-DE/KDE unit)

101-KDF

MAGNETIC LOCK WITH INTEGRATED ACTIVATION SENSOR

LIST

Single 89.00

Add to List

67.00

45.00

End View

56.00

101-DE with DFC-J

Specify 2 for pair of doors

		epolity in the pair of the control of
	1511DEV	Single, 1650 lbs holding force, 670/350 mA @12/24 VDC	560.00
	1571DEV	Single, 1200 lbs holding force Energy Saver, 250/125 mA @12/24 VDC	532.00
	1581DEV	Single, 650 lbs holding force, 440/220 mA @12/24 VDC	444.00
		Outdoor Locks
	1575DEU	Single outdoor magnetic lock with magnetic bond sensor, 1200lbs	532.00
	1576DEU	Single face drilled outdoor magnetic lock with magnetic bond sensor, 1200lbs	532.00
	1576DE-ZB	Inswing mounting bracket for 1576DEU	167.00

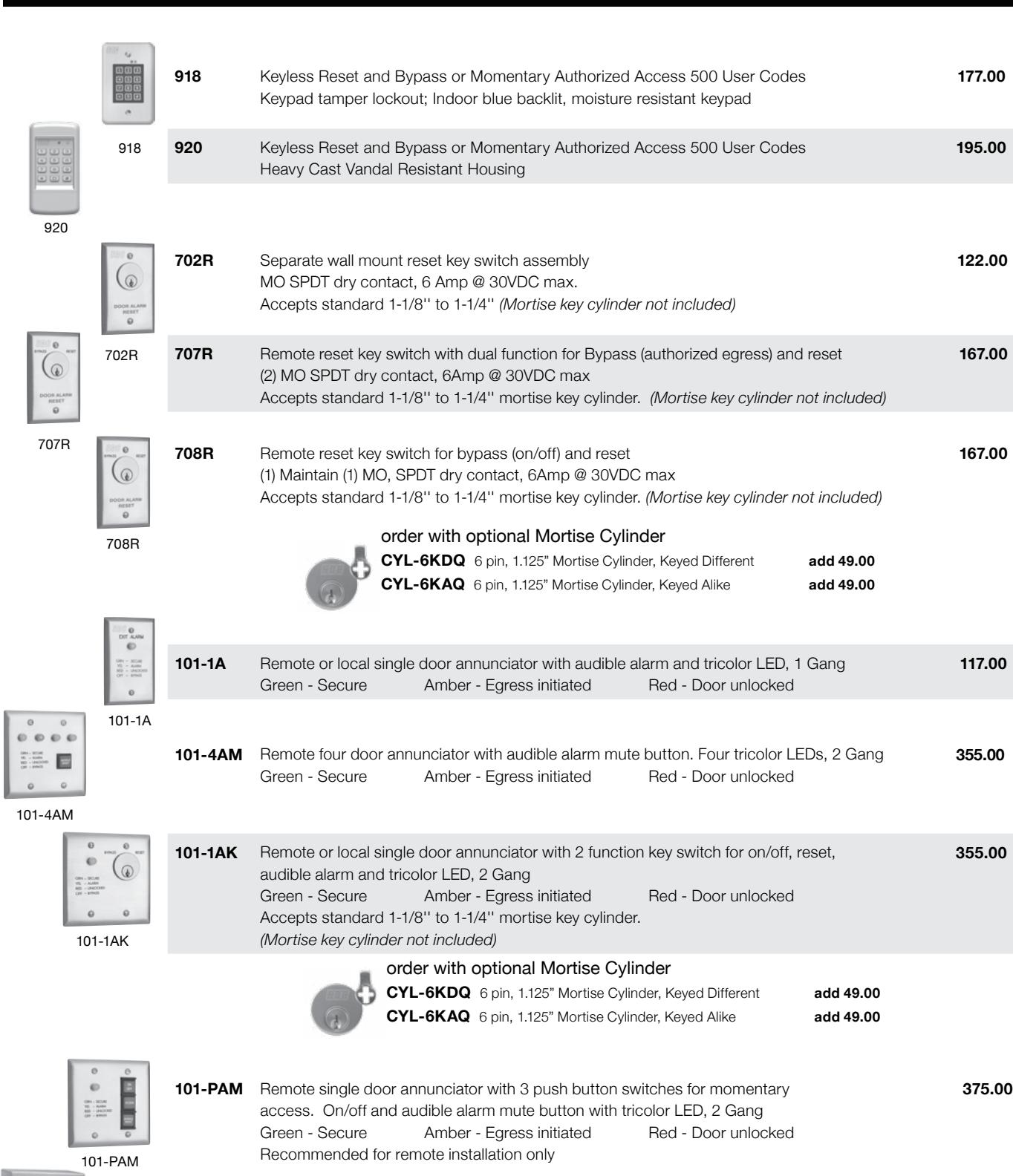

101-1AK

M	Add to List
٧	628 Clear Anodized Aluminum (Standard)	N/C

Black Anodized Single 89.00

Powder Coat Finishes

OPTIONAL MONITORING

tampering and obstructions. (1581DE SPST only)

egress after alarm and exit delay activation.

Mounting Kits & Angle Brackets - See page 10 - 11

(a coating electrostatically applied to form a hard finish, that is tougher than conventional paint)

Dark Bronze Powder Coat Painted (313/613 Equal)

B Magnetic bond sensor, indicates locked with full holding force, low holding force, unlocked,

Door position sensor, indicates door open and door closed. Commonly used to verify

DEC-J

	(D) Door position sensor not available with 1581, 1575 and 1576
OF	OPTIONAL HARDWARE			Add to List
10	1-1AK	Outdoor reset with LED and Audible annunciator. 2-gang outdoor box require	red	355.00
		(Interior 101-DE and 1575 or 1576 outdoor magnetic lock required)
DE	EC-J	3 Gang Interior surface mount box for 101-DE		100.00
SH	HD-J	Shroud for surface mount box DEC-J outdoor use	SHD-J	67.00

SHD-.I with 101-DE

41.00

107.00

101-SP External 15 watt speaker connects directly to 1511S or 1511T for enhanced decibels onsite or remote voice message annunciation. Speaker driver may be provided by others for extreme decibel requirements.

101-SPSN

101-SPSN Remote Single Gang Annunciator with speaker and 80db tone. Duplicates ExitCheck alternating voice message and tone. Compatible with 101-DE Controller Only.
