Overhead Holders & Stops

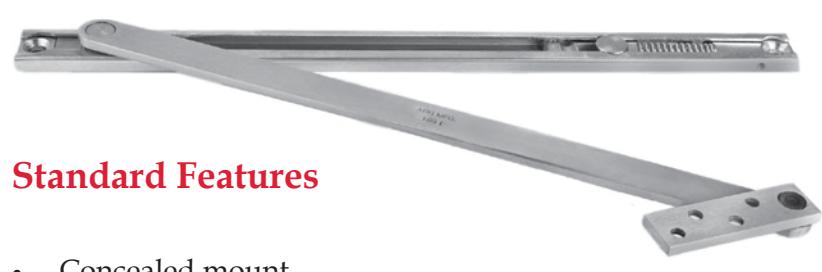

1000SL Series Concealed Mount, Heavy Duty, Slim Line

• Concealed mount
• Heavy duty
• Slim line channel designed for aluminum store front doors
• Stop and hold-open functions available
• Single or double acting doors
• Non-handed
• weight doors
• Standard installation from 85° to 110° of opening (5° increments)
• Shock absorbing spring provides 3° to 5° cushion before dead-stop
• 1-¾" minimum door thickness
• UL Listed as Miscellaneous Fire Door Accessories for use on rated up to 3 hours (stop function only)
• Average weight per unit = 5 lbs.

Door Frame Opening		Model Number
Hinges or Offset Pivots	Center Hung	Hold Open	Stop
27" - 29-	30" - 32-	1011SL	1021SL
30" - 35-	33" - 38-	1012SL	1022SL
36" - 39-	39" - 42-	1013SL	1023SL
40" - 43-	43" - 46-	1014SL	1024SL
44" - 52"	47" - 54"	1015SL	1025SL
ANSI Code		C01511	C01541

Options Available

(see page B-5 for details)

• SEC Security fasteners
• LL For lead-lined door applications
• LS Less shock-absorbing spring for special applications
• N All stainless steel (non-ferrous) components for wet environments to prevent corrosion (stop function only)
• T Jamb bracket is replaced with a threaded pivot screw and nylon washer
• SPECIAL Contact ABH if the dimensions, hardware or is shown on the template or if additional hardware is being used at the top of the door. A custom template and/or unit may be required.
• If using a closer, please go to our website and reference "ABH Overhead Holder & Stop Compatibility Chart" to

Material

• Stainless steel is the standard base material for arm and jamb

Specify When Ordering

• Model Number
• Finish
• Option(s), if applicable
