1000SL SERIES SLIM-LINE CONCEALED HOLDERS & STOPS

WITH A110 WIDE THROW HINGE

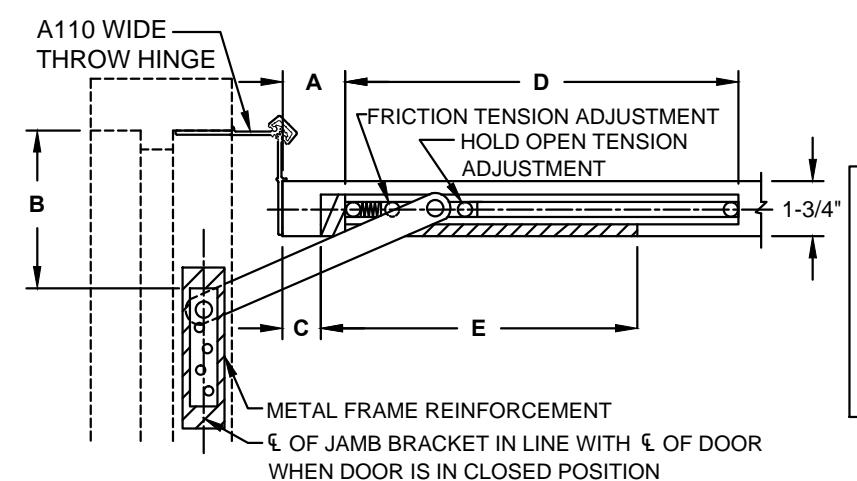

• A = FROM HINGE EDGE OF DOOR TO START OF CHANNEL CUT-OUT
• B = FROM HINGE EDGE OF FRAME TO START OF JAMB BRACKET CUT OUT
• C = FROM HINGE EDGE OF DOOR TO START OF ARM CUT-OUT
• D = CHANNEL CUT OUT LENGTH
• E = ARM CUT OUT

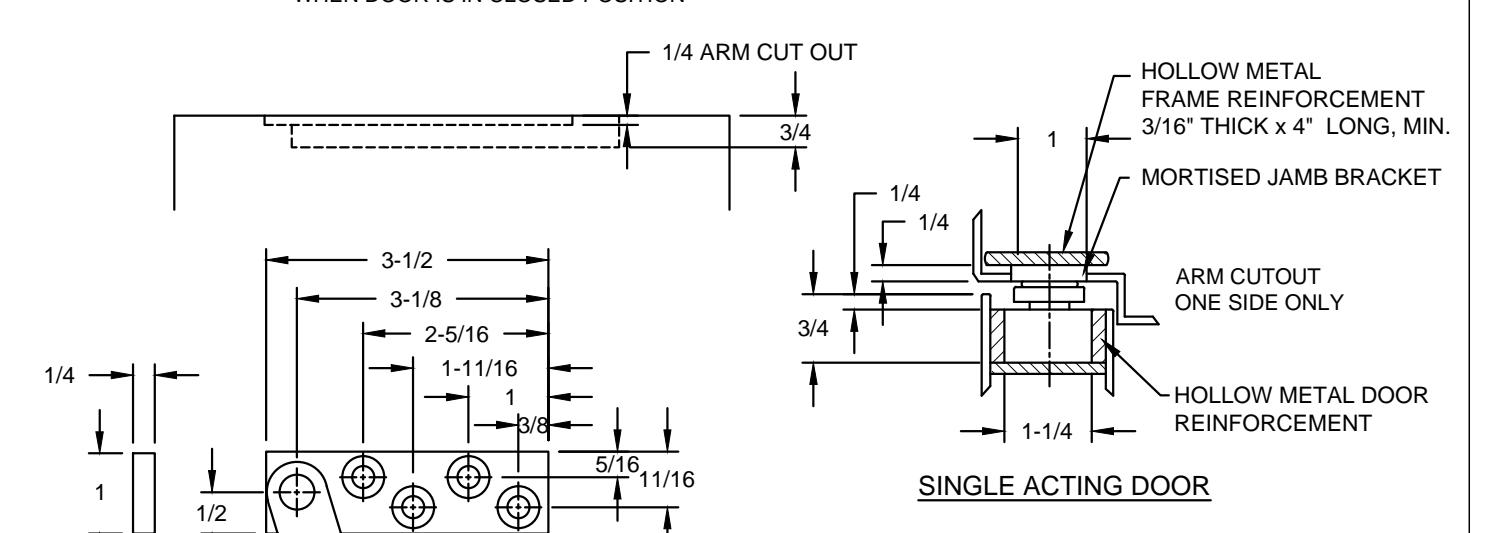

JAMB BRACKET

1000 SLT REPLACES THE JAMB BRACKET WITH A THREADED NYLON JAMB PIVOT SCREW, <u>ADD 3/8" TO B DIM.</u> DRILL & TAP FRAME FOR 3/8-24 M.S. NO FRAME PREP NEEDED. NOTE: 1/4" OR GREATER REINFORCEMENT RECOMMENDED

NOTES:

• 1. REVERSIBLE/ NON HANDED
• 2. FOR SINGLE ACTING DOORS ONLY
• ALWAYS REQUEST LATEST TEMPLATE/ DRAWING FOR NEW INSTALLATIONS.
• ALL DIMENSIONS ARE IN INCHES.
• 5. DRAWING IS NOT TO SCALE.
• 6. ALL DRILLING AND TAPPING TO BE DONE IN FIELD.

	SCREW DETAIL
	QTY	WOOD	METAL
JAMB	4	WOOD SCREW	1/4-20 x 3/4 FLAT HEAD MACHINE SCREW
DOOR	2		5/16-18 x 1-1/2 FLAT HEAD MACHINE SCREW

1000SLWT-1-02.DWG

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

1000SL WITH A110WT WIDE THROW HINGE

© 2017 ABH Mfg., Inc. printed in USA

PAGE 1 OF 2 REVISED 05-03-17

1000SL CONCEALED HOLDERS & STOPS WITH A110WT WIDE THROW HINGE

1010SL HOLD-OPEN 1020SL STOP FOR 1-3/4 THICK DOOR

• 1. FOR DEAD STOP ADD 7/8" TO "A" DIMENSION
• 2. FOR 1000SLT ADD 3/8" TO "B" DIMENSION
• 3. ALL DIMENSIONS ARE IN INCHES.
• 4. "A" & "C" DIMENSIONS MEASURED FROM HINGE EDGE OF DOOR.
• 5. "B" DIM. MEASURED FROM HINGE EDGE OF FRAME

DEGREE		85° H.O.				90° H.O.				95° H.O.
MODEL NO.	DOOR OPENING	Α	В	С	E	Α	В	С	E	Α	В	С	Е	D
• 1011SL • 1021SL	27 TO 29-15/16	5-3/4	4-1/2	2-1/2	17-3/4	5-3/8	4-1/4	0	20	_	_	_	_	17-3/8
• 1012SL • 1022SL	30 TO 35-15/16	6-7/8	6-1/2	5-1/2	18-1/8	6-5/8	6	5-1/8	18	6-1/8	5-1/2	3-3/4	19	18-13/16
• 1013SL • 1023SL	36 TO 39-15/16	11-1/8	8	7	22-3/8	10-5/8	7-1/2	6-1/2	22-1/2	10-3/16	7	6	22-1/2	20-1/8
• 1014SL • 1024SL	40 TO 43-15/16	13-15/16	9	8	25-1/2	13-3/8	8-1/2	7-1/2	25-1/2	12-7/8	8	7	25-1/2	21-5/16
• 1015SL • 1025SL	44 TO 52	16-7/8	10	9	28-1/4	16-3/16	9-3/8	8-3/8	28-3/8	15-5/8	8-3/4	7-3/4	28-3/8	22-7/16

DEGREE		100° H.O.				105° H.O.				110° H.O.
MODEL NO.	DOOR OPENING	Α	В	С	Е	Α	В	С	Е	Α	В	С	Е	D
• 1011SL • 1021SL	27 TO 29-15/16	_	_	_	_	_	_	_	-	_		_	_	17-3/8
• 1012SL • 1022SL	30 TO 35-15/16	5-15/16	5	2-1/4	20		_	_	-	-		_	_	18-13/16
• 1013SL • 1023SL	36 TO 39-15/16	9-13/16	6-1/2	5-1/2	22-1/2	9-9/16	6	4-3/4	22-3/4	9-3/8	5-1/2	0	27	20-1/8
● 1014SL ● 1024SL	40 TO 43-15/16	12-1/2	7-1/2	6-1/2	25-3/8	12-1/8	7	6	25-7/8	11-7/8	6-1/2	5-1/2	25-1/2	21-5/16
● 1015SL ● 1025SL	44 TO 52	15-1/8	8-1/4	7-1/4	28-3/8	14-3/4	7-3/4	6-3/4	28-3/8	14-1/2	7-1/4	6-1/4	28-3/8	22-7/16

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

1000SLWT-2-02.DWG 1000SL WITH Architectural Builders Hardware Mfg., Inc. A110 WIDE THROW HINGE

©2017 ABH Mfg., Inc. printed in USA

PAGE 2 OF 2 REVISED 05-03-17
