Overhead Holders & Stops

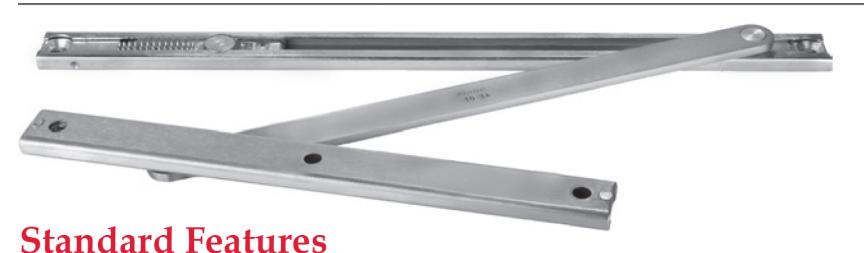

1000SA Series Concealed Mount, Heavy Duty, Slim Line, Adjustable

• Concealed mount
• Heavy duty
• Slim line channel designed for aluminum store front doors
• Stop and hold-open functions available
• Single acting doors only
• Non-handed
• For interior or exterior use on frequent traffic and heavy weight doors
• Degree of opening is field-adjustable after installation from 85° to 110° (5° increments)
• Shock absorbing spring provides 3° to 5° cushion before dead-stop
• 1-3/4" minimum door thickness
• UL Listed as Miscellaneous Fire Door Accessories for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours (stop function only)
• Average weight per unit = 5 lbs.

Door Frame Opening	Model Number
Hinges or Offset Pivots	Hold Open	Stop
27" - 29-15/16"	1011SA	1021SA
30" - 35-15/16"	1012SA	1022SA
36" - 39-15/16"	1013SA	1023SA
40" - 43-15/16"	1014SA	1024SA
44" - 52"	1015SA	1025SA
ANSI Code	C01511	C01541

Options Available

(see page B-5 for details)

• SEC Security fasteners
• LL For lead-lined door applications
• LS Less shock-absorbing spring for special applications
• N All stainless steel (non-ferrous) components for wet environments to prevent corrosion (stop function only)
• SPECIAL Contact ABH if the dimensions, hardware or specifications differ from what is shown on the template or if additional hardware is being used at the top of the door. A custom template and/or unit may be required.
• If using a closer, please go to our website and reference "ABH Overhead Holder & Stop Compatibility Chart" to determine possible conflict.

Material

• Stainless steel is the standard base material for arm and jamb bracket for all finishes.

Specify When Ordering

• Model Number
• Finish
• Option(s), if applicable
