1000HC Series Template – Heavy Duty, Concealed Mount with Hold Closed Function

Open the original PDF document

View PDF

1000HC (HOLD-CLOSED) SERIES CONCEALED HOLDERS - STOP ONLY

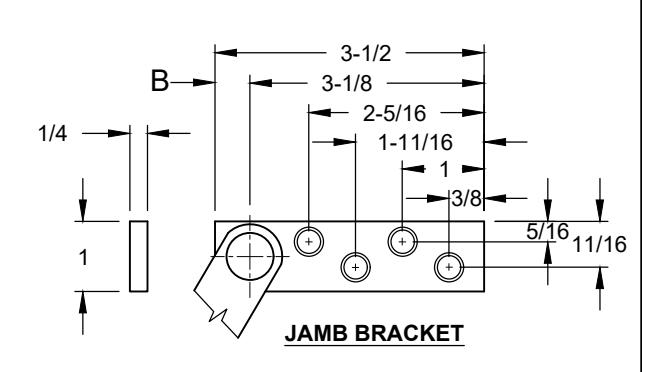

SCREW DETAIL
QTY WOOD METAL
JAMB 4 1/4"- 20 x 3/4" FLAT HEAD
MACHINE SCREW
DOOR 2 5/16 " -18 x 1- \frac{1}{2} " FLAT HEAD MACHINE SCREW

NOTES:

  • 1. REVERSIBLE/ NON HANDED

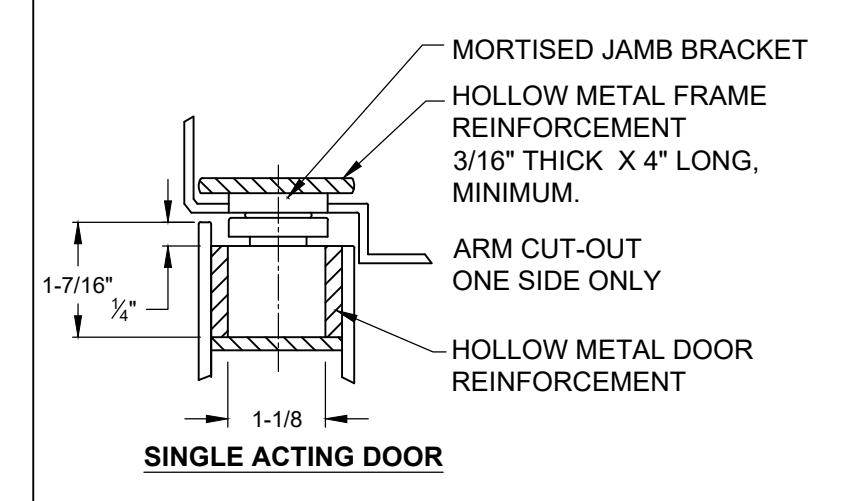

  • 2. FOR SINGLE ACTING DOORS
  • ALWAYS REQUEST LATEST TEMPLATE/ DRAWING FOR NEW INSTALLATIONS.
  • 4. ALL DIMENSIONS ARE IN INCHES.
  • 5. DRAWING IS NOT TO SCALE, UNLESS NOTED.
  • 6. ALL DRILLING AND TAPPING TO BE DONE IN FIELD.

ABH<sup>®</sup> MANUFACTURING INC.

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

1000HC

PAGE 1 OF 2 ISSUED 05-07-21

1000HC-1-00 DWG

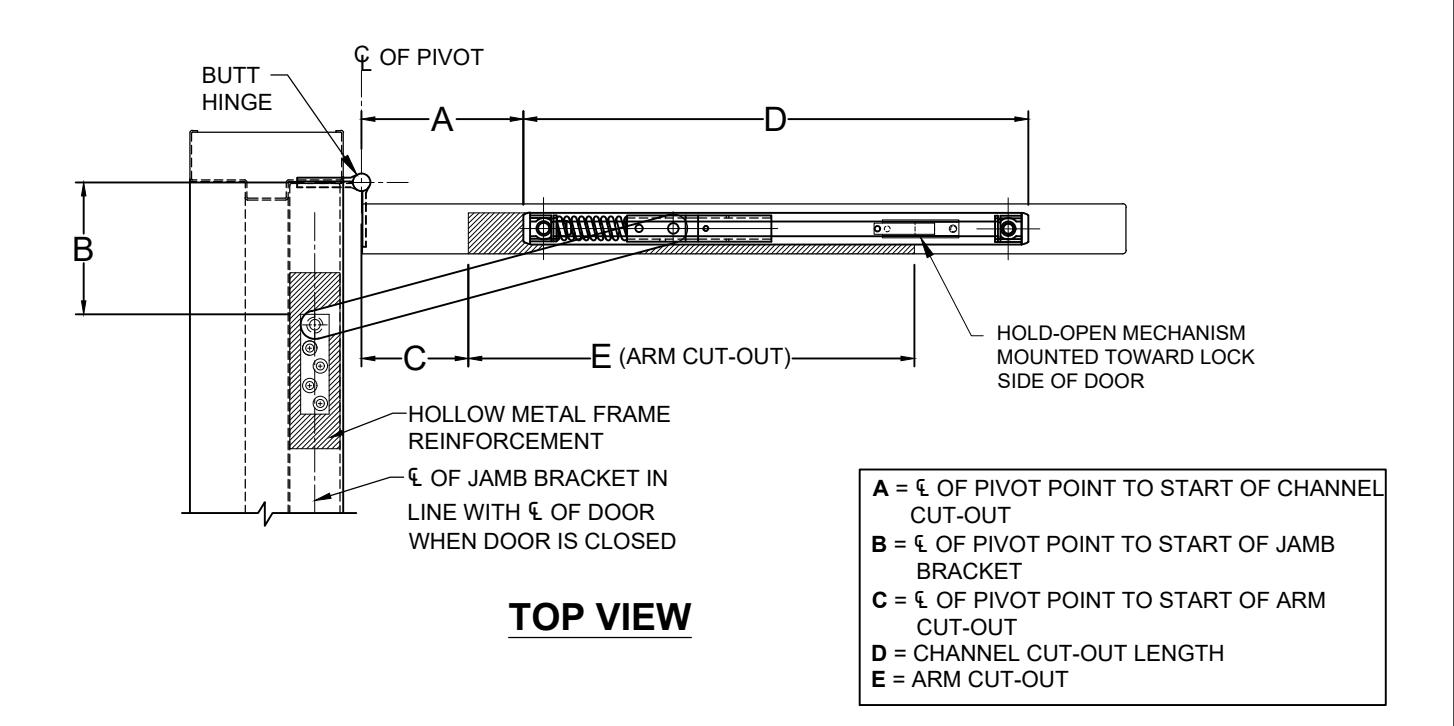

1000HC (HOLD CLOSED) SERIES CONCEALED HOLDERS - STOP ONLY

ALL DIMENSIONS ARE IN INCHES.

BUTT HINGE ONLY

FOR OTHER THEN 90° SWING, CUSTOM UNIT REQUIRED.

DEGREE 85° H.O. 90° H.O. 95° H.O.
MODEL NO. DOOR
OPENING 		Α В С Е Α В O Е Α В O Е D
1021HC 27 to 29-15/16 _ _ 5-11/16 4-5/8 3-3/4 15-5/8 17-11/16
1022HC 30 to 35-15/16 7-1/2 5-5/8 4-3/4 17-5/8 18-7/8
1023HC 36 to 39-15/16 _ _ 8-3/8 7-1/2 6-3/4 18-3/4 21-5/16
1024HC 40 to 43-15/16 _ 12-9/16 8-11/16 8 22-3/4 _ 22-11/16
1025HC 44 to 52 _ 15-1/4 9-7/8 8-7/8 26-1/8 _ _ _ 24-1/8
DEGREE 100° H.O. 105° H.O. 110° H.O.
MODEL NO. DOOR
OPENING 		Α В С E Α В С Е Α В C Е D
1021HC 27 to 29-15/16 _ _ _ _ _
1022HC 30 to 35-15/16 _ _ _ _ _
1023HC 36 to 39-15/16
1024HC 40 to 43-15/16 _ _
1025HC 44 to 52 _ _ _ _ _

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

1000HC-2-00.DWG

1000HC

PAGE 2 OF 2 ISSUED 05-07-21
