1000A Series – Cut Sheet

Open the original PDF document

Overhead Holders & Stops

Innovation, Quality, Customer Service...

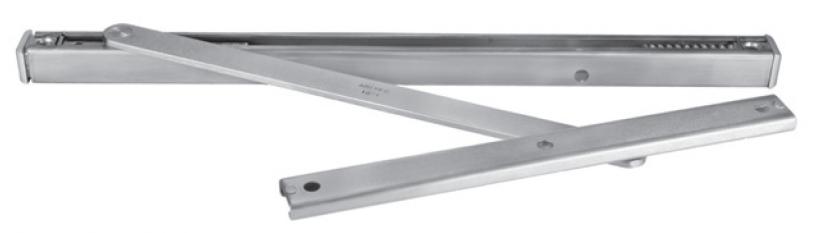

Concealed mount
Heavy duty
Stop, hold-open and friction functions available
Single acting doors only
Non-handed
For interior or exterior use on frequent traffic and heavy weight doors
Degree of opening is field-adjustable after installation from 85° to 110° (5° increments)
Shock absorbing spring provides 3° to 5° cushion before dead-stop
1-3/4" minimum door thickness
UL Listed as Miscellaneous Fire Door Accessories for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours (stop function only)
Average weight per unit = 6 lbs.

Door Frame Opening	Model Number
Hinges, Swing Clear or Offset Pivots	Hold Open	Stop	Friction
27" - 29-15/16"	1011A	1021A	1031A
30" - 35-15/16"	1012A	1022A	1032A
36" - 39-15/16"	1013A	1023A	1033A
40" - 43-15/16"	1014A	1024A	1034A
44" - 52"	1015A	1025A	1035A
ANSI Code	C01511	C01541	C01531

(see page B-5 for details)

SEC Security fasteners
LL For lead-lined door applications
LS Less shock-absorbing spring for special applications
N All stainless steel (non-ferrous) components for wet environments to prevent corrosion
HC Hold Closed
SPECIAL Contact ABH if the dimensions, hardware or specifications differ from what is shown on the template or if additional hardware is being used at the top of the door. A custom template and/or unit may be required.
If using a closer, please go to our website and reference "ABH Overhead Holder & Stop Compatibility Chart" to determine possible conflict.

• Stainless steel is the standard base material for arm, channel and jamb bracket for all finishes.
