1000A SERIES CONCEALED HOLDERS & STOPS WITH A110WT WIDE THROW HINGE

HEAVY DUTY CONCEALED MOUNT • 1010A HOLD-OPEN ●1020A STOP ●1030A FRICTION A110WT HINGE D -FRICTION TENSION ADJUSTMENT HOLD OPEN TENSION ADJUSTMENT 1-3/4 12-1/2

METAL FRAME REINFORCEMENT

WHEN DOOR IS IN CLOSED POSITION

€ OF JAMB BRACKET IN LINE WITH € OF DOOR

  • A = FROM HINGE EDGE OF DOOR TO START OF CHANNEL CUT-OUT
  • B = FROM HINGE EDGE OF FRAME TO € OF JAMB BRACKET PIVOT POINT (REF. ONLY)
  • C = FROM HINGE EDGE OF DOOR TO START OF ARM CUT-OUT
  • D = CHANNEL CUT-OUT LENGTH
  • E = ARM CUT-OUT

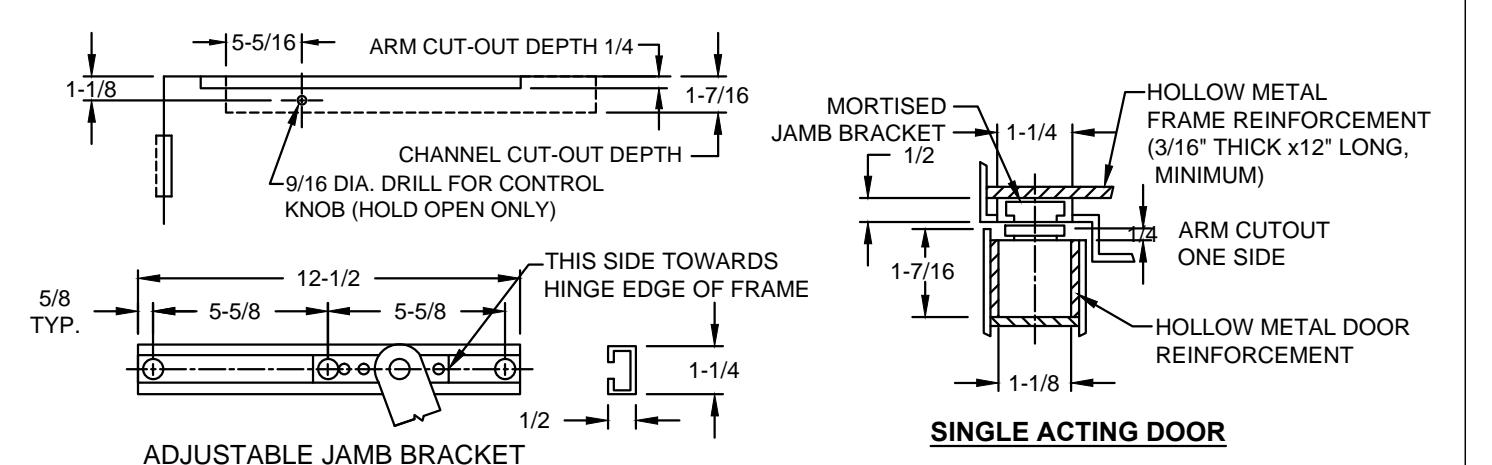

ADJUSTABLE

F = FROM HINGE SIDE OF FRAME TO START OF JAMB BRACKET CUT-OUT

  • JAMB BRACKET SLIDING CAM MUST BE INSTALLED WITH a. SHORT END TOWARD HINGE EDGE OF FRAME
  • AFTER INSTALLATION, TIGHTEN (3) SET SCREWS IN JAMB BRACKET WITH 5/32 ALLEN WRENCH AT SELECTED DEGREE USING "B" DIMENSION AS REFERENCE.

SCREW DETAIL
QTY WOOD METAL
JAMB 3 #14 x 1-1/2" FLAT HEAD 1/4-20 x 3/4" FLAT HEAD
WOOD SCREW MACHINE SCREW
DOOR 1 7 #18 x 2-1/2" FLAT HEAD 5/16-18 x 1-1/2" TRUSS
WOOD SCREW HEAD MACHINE SCREW
TIVE A DEGREE OF DOOR OPENING TO FOUR FITTER
MODEL
NO. 		А B (REFERENCE ONLY)* C D Е F
DEGREE OF DOOR OPENING
85° 90° 95° 100° 105° 110°
  • 1011A
  • 1021A
  • 1031A
27 TO
29-15/16 		4-1/4 7-5/8 5-13/16 - - - - 2 20-5/8 20 2
  • 1012A
  • 1022A
  • 1032A
30 TO
35-15/16 		4-5/16 9-15/16 8-9/16 7-1/8 - - i 1-1/2 23-7/8 23-3/4 2-1/8
  • 1013A
  • 1023A
  • 1033A
36 TO
39-15/16 		5-9/16 10-7/8 9-1/8 7-13/16 5-7/8 5-7/16 ı 0 26-1/4 27-1/2 1-9/16
  • 1014A
  • 1024A
  • 1034A
40 TO
43-15/16 		7-13/16 - 14-1/16 12-1/2 11-1/8 10 9 4 30 31-1/8 4-5/8
  • 1015A
  • 1025A
  • 1035A
44 TO
52 		5-9/16 - 14-11/16 12-7/8 11-3/8 9-15/16 8-7/8 4-1/2 31 35-1/4 5-1/4

NOTES:

  • 1. REVERSIBLE/ NON - HANDED
  • FOR SINGLE ACTING DOORS 2. ONI Y
  • ALWAYS REQUEST LATEST TEMPLATE/ DRAWING FOR NEW INSTALLATIONS.
  • 4. ALL DIMENSIONS ARE IN INCHES.
  • 5. DRAWING IS NOT TO SCALE.
  • ALL DRILLING AND TAPPING TO BE DONE IN FIELD.
  • DIMENSIONS B = HOLD-OPEN FOR HOLDERS, OPENING FOR STOPS

1000AWT-01.DWG

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

1000A WITH A110WT WIDE THROW HINGE

©2017 ABH Mfg., Inc. printed in USA

PAGE 1 OF 1 REVISED 05-03-17
