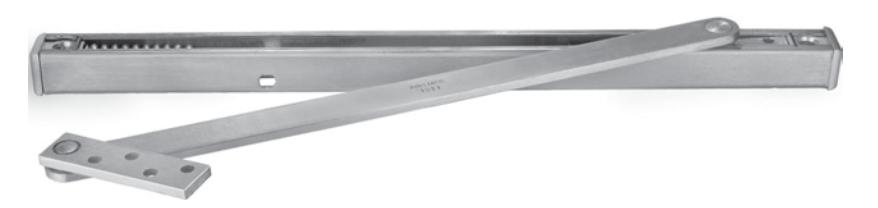

1000 Series Concealed Mount, Heavy Duty – Cut Sheet

Open the original PDF document

Overhead Holders & Stops

Concealed mount
Heavy duty
Stop, hold-open and friction functions available
Single or double acting doors
Non-handed
weight doors
Standard installation from 85° to 110° of opening (5° increments)
Shock absorbing spring provides 3° to 5° cushion before dead-stop
1-¾" minimum door thickness
UL Listed as Miscellaneous Fire Door Accessories for use on rated up to 3 hours (stop function only)
Average weight per unit = 6 lbs.

Door Frame Opening		Model Number
Hinges, Swing Clear or Offset Pivots	Center Hung	Hold Open	Stop	Friction
18" - 22-	-	1016	1026	1036
23" - 26-	-	1017	1027	1037
27" - 29-	30" - 32-	1011	1021	1031
30" - 35-	33" - 38-	1012	1022	1032
36" - 39-	39" - 42-	1013	1023	1033
40" - 43-	43" - 46-	1014	1024	1034
44" - 52"	47" - 54"	1015	1025	1035
ANSI Code		C01511	C01541	C01531

(see page B-5 for details)

SEC Security fasteners
LL For lead-lined door applications
LS Less shock-absorbing spring for special applications
N All stainless steel (non-ferrous) components for wet environments to prevent corrosion
T Jamb bracket is replaced with a threaded pivot screw and nylon washer
HC Hold Closed
SPECIAL Contact ABH if the dimensions, hardware or is shown on the template or if additional hardware is being used at the top of the door. A custom template and/or unit may be required.
If using a closer, please go to our website and reference "ABH Overhead Holder & Stop Compatibility Chart" to

• Stainless steel is the standard base material for arm, channel
