10 SERIES FOR ACCESS CONTROL APPLICATIONS KEYSWITCHES

FEATURES

Available in 3 styles:

• Single gang, Jamb, Combination Jamb Plate /Keyswitch
• Available with momentary or maintained contact
• The Combo Plate allows for independent operation of the Push Plate and Keyswitch, or allows the Keyswitch to activate and disable the Push Plate.
• Includes a cherry switch with NO/NC or COM contacts
• Aesthetically pleasing design allows for easy installation and use

STAINLESS STEEL

Keyswitches add an additional level of security by providing an economical and efficient way to control or restrict access in a variety of applications.

*Note: Mortise Cylinder Not Included

EASY INSTALLATION MULTIPLE STYLES

10JAMBSWITCHMOM 10JAMBSWITCHONF

10KEYSWITCHMOM 10KEYSWITCHONF

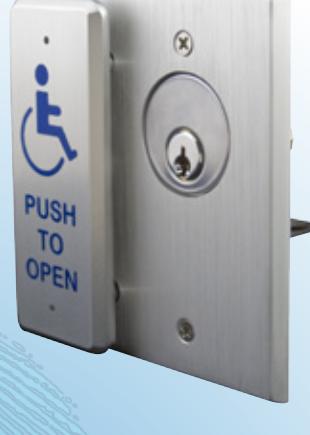

10COMBOPLATEMOM 10COMBOPLATE

West: 800-544-4422 • East: 800-225-6737

TECHNICAL SPECIFICATIONS

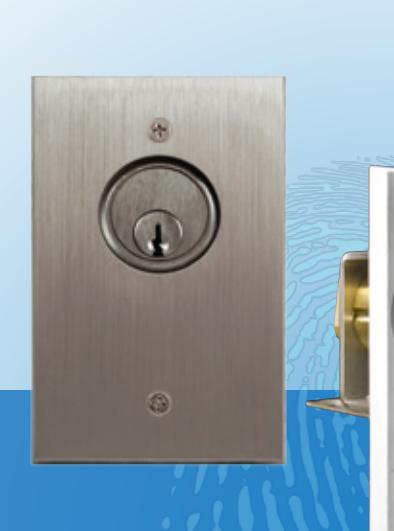

Keyswitch (Single Gang)

Switch Voltage 125/250 VAC

Switch Current 6A/3A

Dimensions

4¾"H x 3"W x ¼"D

Mortise Cylinder

1 1 / 8 " – Not Included

Mounting Options Most Single-Gang Boxes

Contacts NO/NC/COM

Keyswitch (Jamb)

Switch Voltage 125/250 VAC

Switch Current 6A/3A

Dimensions

4¾"H x 1¾"W x ¼"D

Mortise Cylinder

1 1 / 8 " – Not Included

Mounting Options Most Jamb Style Boxes

Contacts

NO/NC/COM

Combo Plate (Keyswitch)

Switch Voltage 125/250 VAC

Switch Current 6A/3A

Dimensions

4½"H x 4½"W x ¼"D

Mortise Cylinder 1 1 / 8 " – Not Included

Mounting Options

Standard 2G Electrical Box

Contacts

NO/NC/COM

Combo Plate (Push Plate)

Switch Voltage 125 VAC

Switch Current 15A

Dimensions (Plate Only) 4¼"H x 1¾"W x ¼"D

Cherry Switch Properties SPST / Momentary Contact

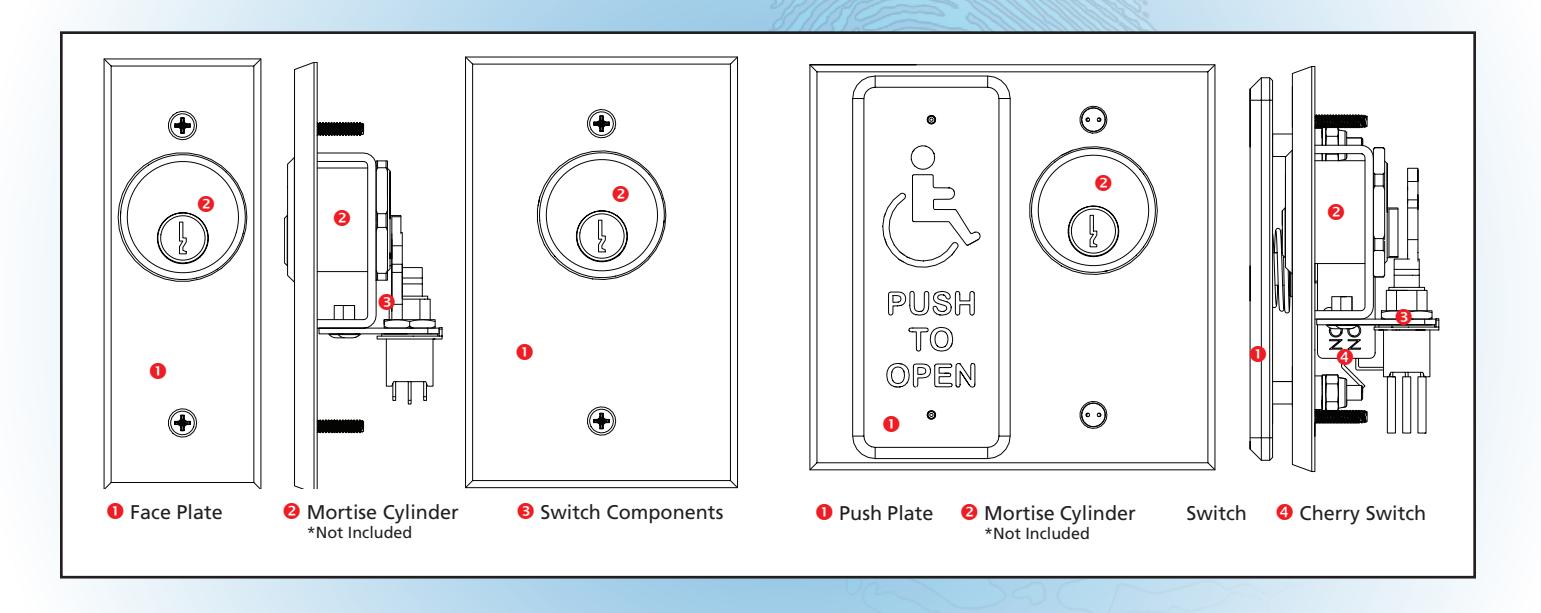

KEYSWITCH DETAILS
