Pivots & Pivot Sets

Offset Pivot Set & Reinforcing Pivot

0547 Pivot Set - ¾" Offset

Standard Features

• (2) 019 Intermediate Pivots
  • Frame leaves mortise into side jamb
  • Door leaves mortise into hinge edge of door
• 0147 Bottom Pivot
  • -
  • Door leaf mortises into bottom of door
• Handed Specify LH or RH
• For doors using Overhead Concealed Closers
• Maximum door load 500 pounds
• Maximum door width 42"
• Heavy duty bearings
• Stainless steel base material

Options

• • EXTS Extended Spindle on bottom pivot (up to 2" longer than standard)
• • SEC Security fasteners

4-1/4" 1 1/8" 1 1/8" 4-1/4" 1 1/8" 1 1/8" 9-5/8" 5/16" 1-3/16" 2-13/16" 2-13/16" 3/16" 5" 5" 5" 5" Doors ranging from 60" to 90" tall have two intermediate pivot. An additional intermediate pivot should be used for each additional 30" in height.

Meets or exceeds

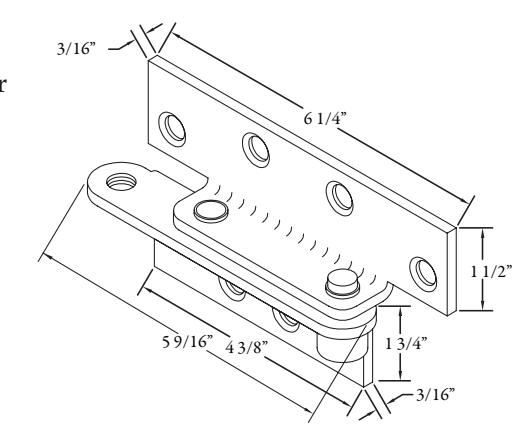

0923 Reinforcing Pivot

Standard Features

• Helps take load off failing top hinge and eliminate door sag
• Surface mounts to the face of the frame header and face of the door
• Matches pivot point of a standard 4-½" butt hinge
• Non-handed
• Maximum door load 300 pounds
• •
• For ⅛" inset door with ¾" offset

Options

• SEC – Security fasteners
