DEADBOLTS STANDARD DUTY DEADBOLTS
SINGLE CYLINDER
077651 SN
Drive in deadbolt
A commercial quality deadbolt that provides a positive deterrent to forced entry.
- Fixed backset 1" (25mm) deadbolt with hardened steel core exceeds ANSI Grade 2 Security against kick-in and saw attacks.
- 2 dia taped cylinder guard and metal insert, turns free with any removal attempt.
- High precision pick-resistant solid metal tumbler plug. 5 or 6 pin available. Brass key nickel plated. "C",Kwikset keyway available.
- Drive in deadbolt Designed to be installed on metal door conveniently. Only one hole is needed on door edge.
- ADA Ergonomic thumb turn.
- Brass bolt nickel plated
- Zinc mounting plate.
- Sturdy, steel latch case.
- Adapter for 2-1/8" hole.
-
Finishes Available:
- PB Polished Brass
- SB Satin Brass
- AB Antique Brass
- AC Antique Copper
- SN Satin Nickel
- SC Satin Chrome
- CR Polished Chrome
- ORB Oil Rubbed Bronze
- TB Black Nickel
- AN Antique Nickel
- PVD Lifetime finish
Inside Rose Assembly

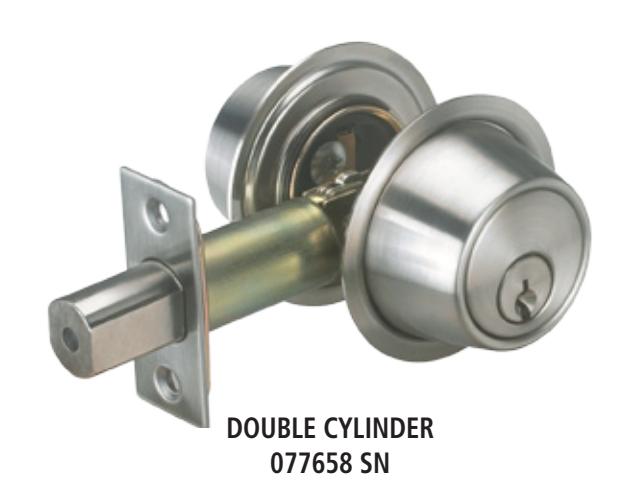

077658 DOUBLE CYLINDER
| Door Prep: | Cross bore 2-1/8" , Edge bore 1" Latch face 1"x2-1/4" . |
|---|---|
| Backset: | 2-3/4" standard, 2-3/8" optional. |
| Door Thickness: | Adjustable 1-3/8" 2". |
| Cylinder: | 5-Pin or 6-Pin removable core. Schlage "C " keyway or Kwikset and other options available. |
| Face plates: | 1"x2-1/4" square corner standard. Round corner and other options available. |
| Strikes: | 2-3/4" square corner standard. Round corner and other options available. |
| Bolt: | 1" throw. Nickel plated. |
| ANSI/BHMA: | A156.5 Grade 3. |
