07062 b.pdfBE365 Keypad Deadbolt Door Preparation Instructions for Door with No Holes

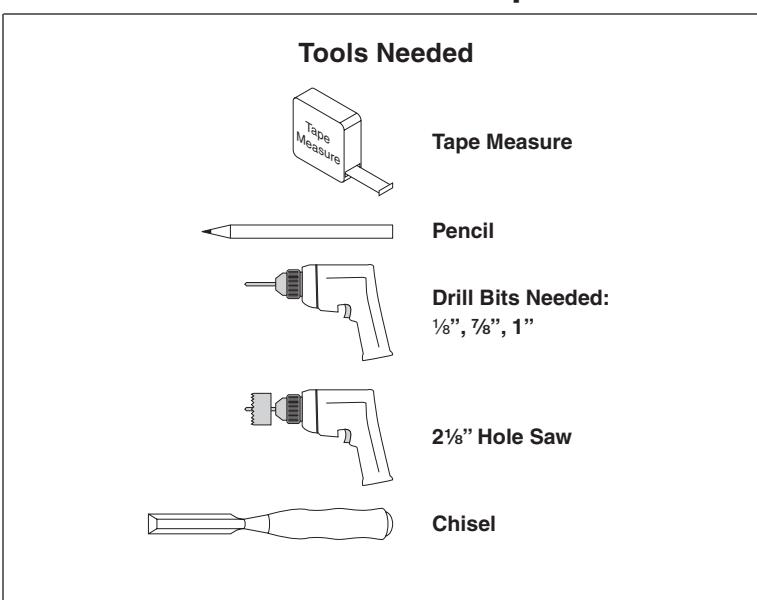

BE365 Door Preparation Instructions For Door With No Holes

1 Measure Door Width If the door is thinner than 1³⁄₈" or thicker than 1³⁄₄", then the lock will not fit properly on the door.

2 Mark Lock Centerline on Door Face and Door Edge 38" from finished floor Door Edge Door Face Tape Measure

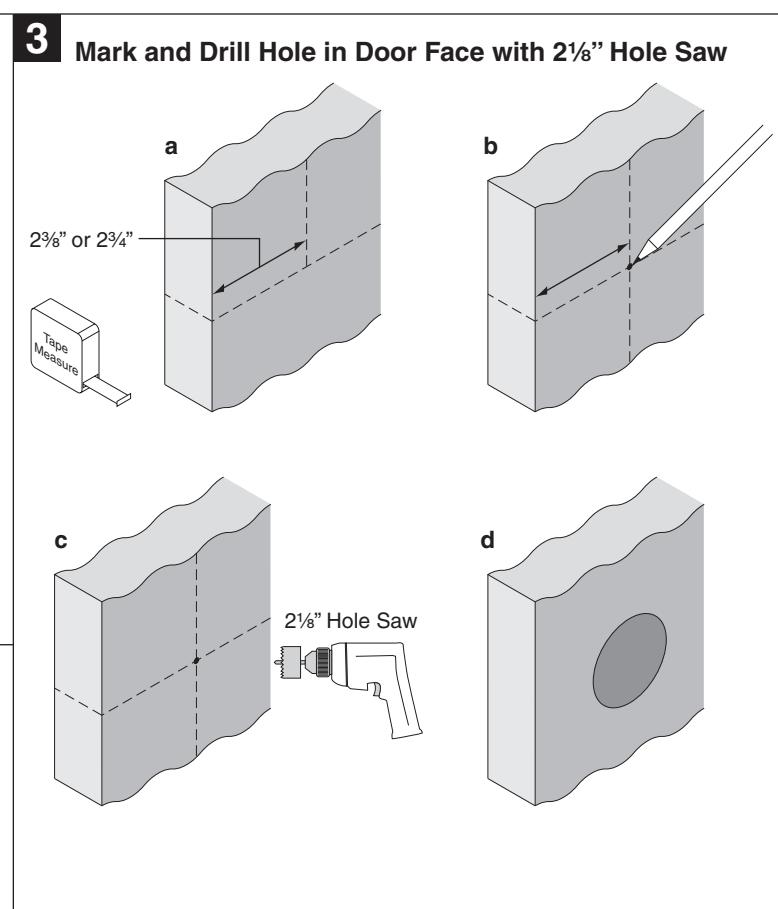

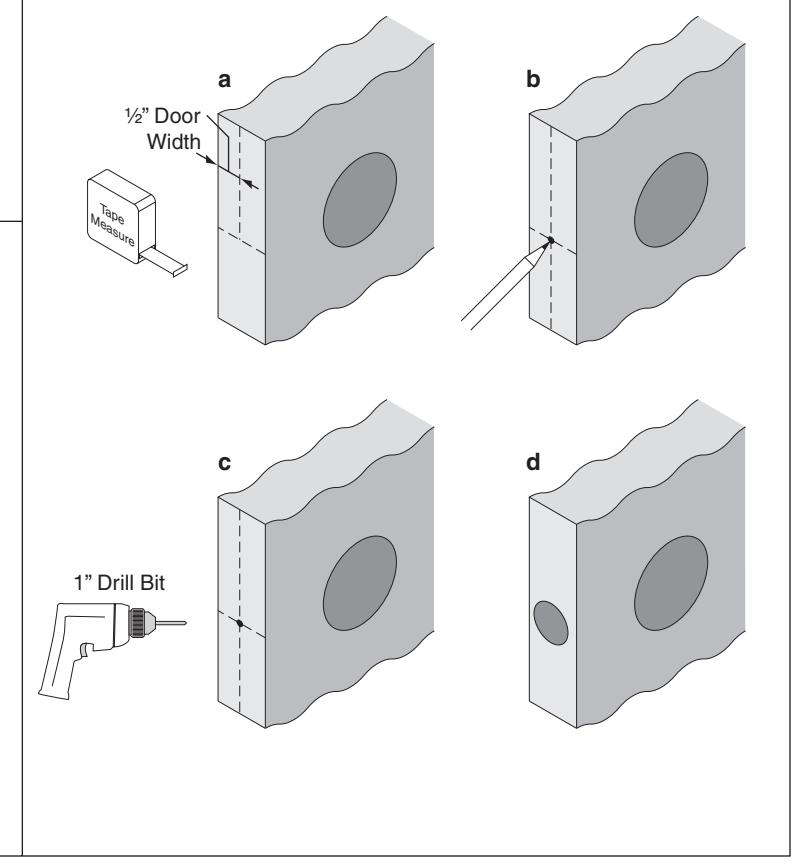

4 Mark and Drill Hole in Door Edge

5 7 If Necessary, Mortise for Latch

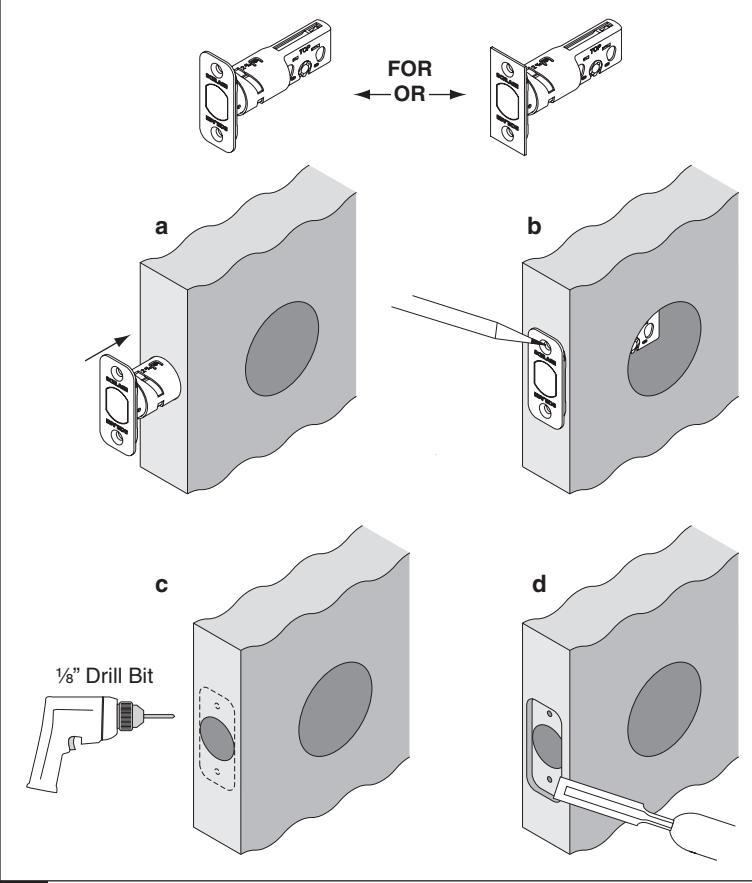

• a. Insert latch into door edge hole.
• b. Use pencil to trace latch and mark holes.
• c. Remove latch and drill two ¹⁄₈" pilot holes.
• d. Use chisel to create latch mortise.

Measure and Mark Door Jamb for Strike

6

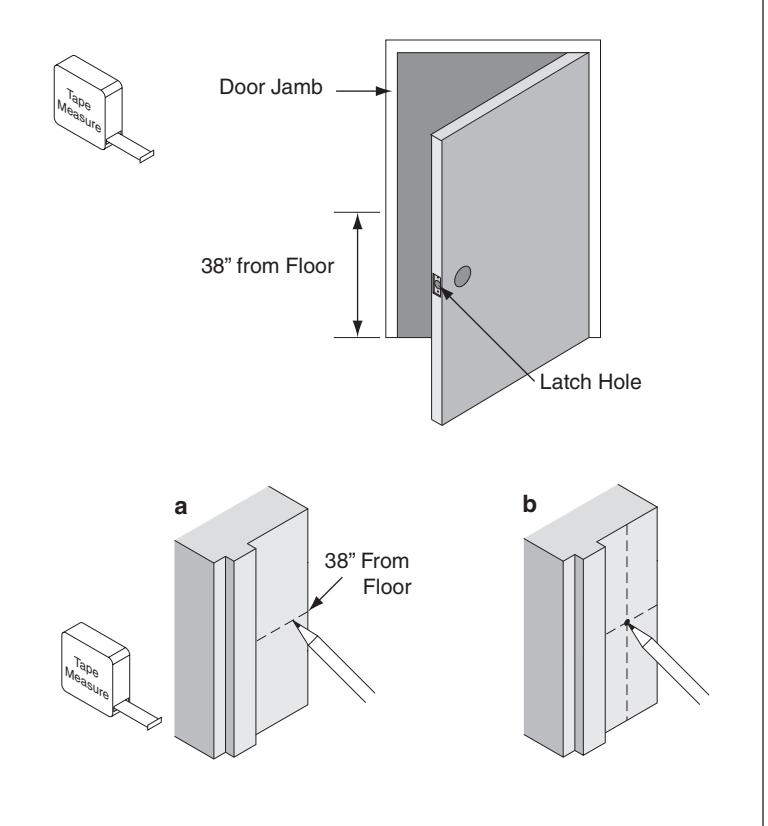

• a. Measure 38" from finished floor and mark on door jamb.
• b. Mark center for strike hole exactly opposite latch hole.

Mark and Drill Holes for Strike

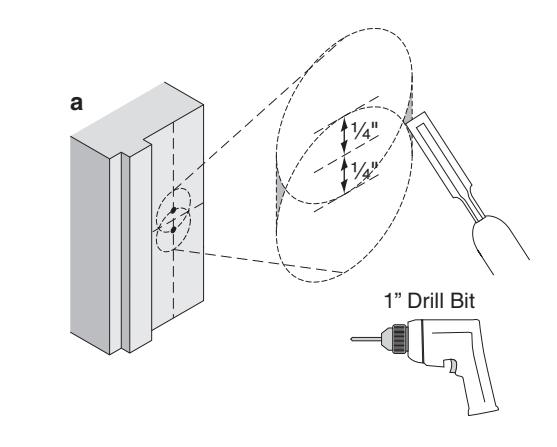

• a. Drill two (2) 1" holes, 1¹⁄₄" deep, as shown. Chisel out excess material.
• b. Line up strike box and strike with hole in door jamb.
• c. Use pencil to trace strike and mark holes.

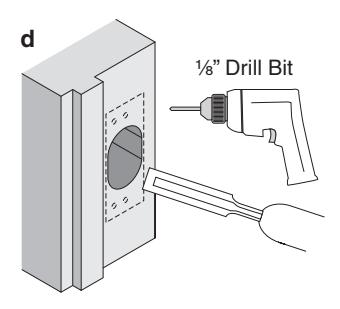

• d. Drill five (5) ¹⁄₈" pilot holes and use chisel to create strike mortise.
