0547 PIVOT SET, \frac{3}{4} " OFFSET, HANDED

FOR USE WITH ARCH TOP DOORS OR OVERHEAD CONCEALED CLOSERS CONSISTS OF (2) 019 INTERMEDIATE PIVOTS & (1) 0147 BOTTOM PIVOT

INSTALLATION INSTRUCTIONS

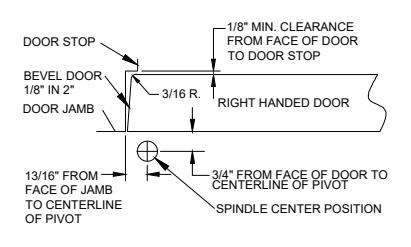

  • 1. MEASURE ^{13}\!\!/_{16}" OUT FROM DOOR JAMB
  • 2. ALLOW \( \frac{1}{6}\)" MIN CLEARANCE FROM DOOR STOP TO DOOR FACE. MEASURE DOOR THICKNESS AND ADD \( \frac{3}{6}\)".
  • WHERE THESE LINES INTERSECT DETERMINES THE CENTERLINE OF THE PIVOT POINT.
  • 4. FLOOR PORTION MUST BE INSTALLED COMPLETELY LEVEL IN BOTH DIRECTIONS PER ILLUSTRATION #1

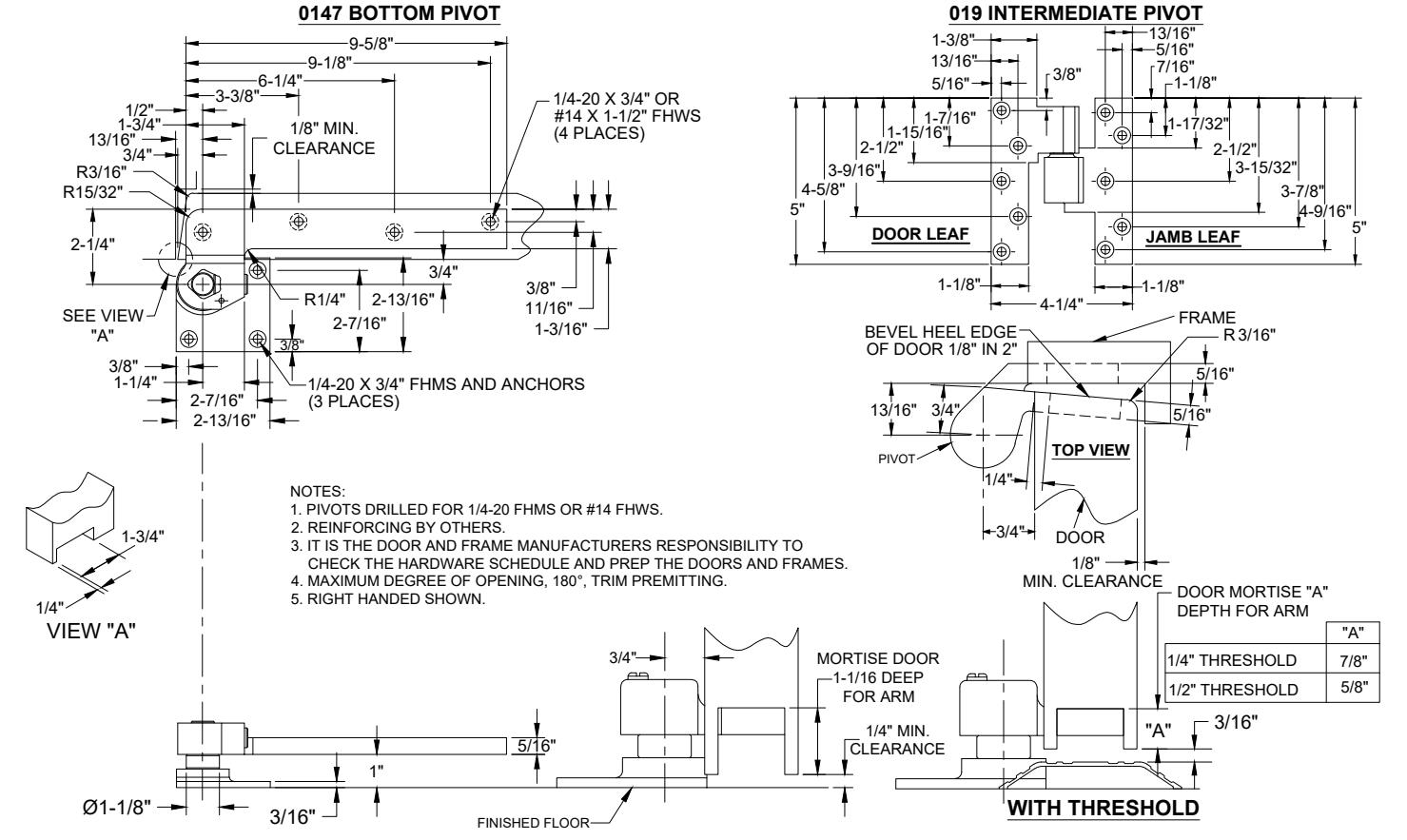

  • 5. INSTALL 019 DOOR PORTION PER TEMPLATE
  • 6. INSTALL 019 JAMB PORTION PER TEMPLATE.
  • 7. INSTALL 0147 DOOR PORTION PER TEMPLATE.

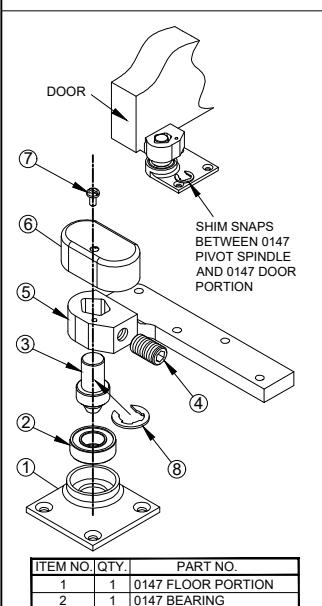

  • 8. SET DOOR ON 0147 FLOOR PORTION BEARING.
  • 9. IF DOOR DRAGS AT FLOOR (OR THRESHOLD, IF USED) LOOSEN SET SCREW AND RAISE DOOR TO DESIRED CLEARANCE AND INSERT \chi_6 " THICK SHIM. RETIGHTEN SET SCREW SECURELY.
  • 10. PUT 0147 COVER ON AND SECURE TIGHTLY WITH 0147 COVER SCREW.

ITEM NO. QTY. PART NO.
1 1 019 DOOR LEAF
2 1 019 ALIGNMENT BALL
3 1 019 NEEDLE BEARING
4 1 019 JAMB LEAF
5 1 019 PIVOT PIN
6 1 019 RETAINER SCREW
7 1 019 END CAP

Disclaimer: This template is to be used for installation, as shown, of said product and is not suitable for every application method. Custom applications, where door sizes, weights and conflicting hardware are a factor, need to be addressed with ABH and proper instructions provided. ABH is not liable for failure or performance of the product due to improper installation methods and/or use. Improper use and/or installation of this product will void the standard warranty.

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc.

1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

© 2020 ABH Mfg., Inc. printed in USA

0547-02.DWG

PAGE 1 OF 1 REVISED 09-3-20
