Pivots & Pivot Sets

Innovation, Quality, Customer Service...

Pocket Pivots

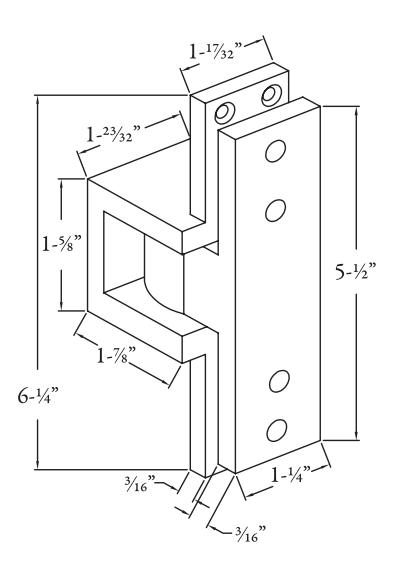

0519 – Pocket Door Pivot

Standard Features

• Pivot point is located inside the frame
• Allows door to swing into a pocket in the frame at a right angle
• When the door is in the pocket, it is completely clear of the door
• Maximum door swing is 90°
• Minimum three pocket pivots per door 60" 90" tall
• Add one pocket pivot for each additional 30" door height
• Maximum door load per pivot 90 pounds
• Non-handed
• Standard
• Heavy duty stainless steel needle bearings
• Stainless steel base material

Options

• SEC – Security fasteners

Meets or exceeds ANSI C07611

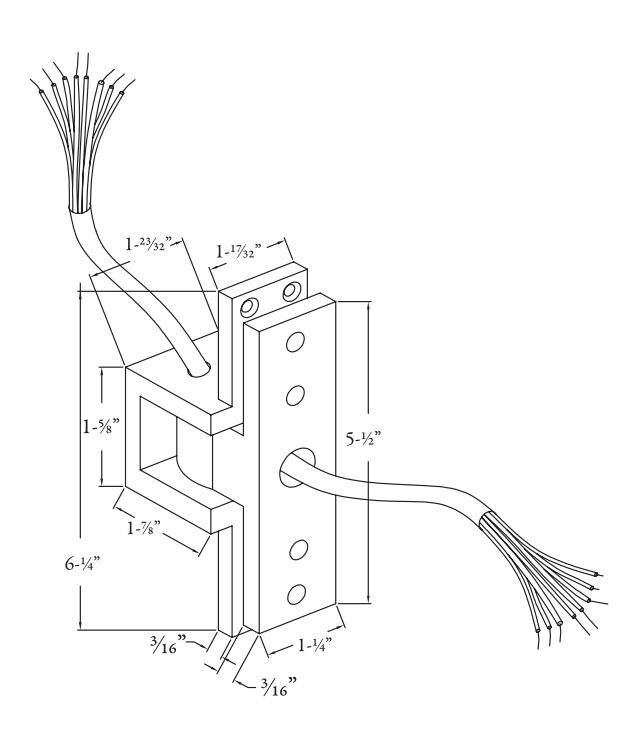

Standard Features

• Pivot point is located inside the frame
• Allows door to swing into a pocket in the frame at a right angle
• When the door is in the pocket, it is completely clear of the door
• Maximum door swing is 90°
• Maximum door load per pivot 90 pounds
• Non-handed
• Standard
• Heavy duty stainless steel needle bearings
• Stainless steel base material

Options

• • EZ EZ Connect Molex® Connectors for installation ease
• • SEC Security fasteners
