Pivots & Pivot Sets

Center Hung Top Pivots

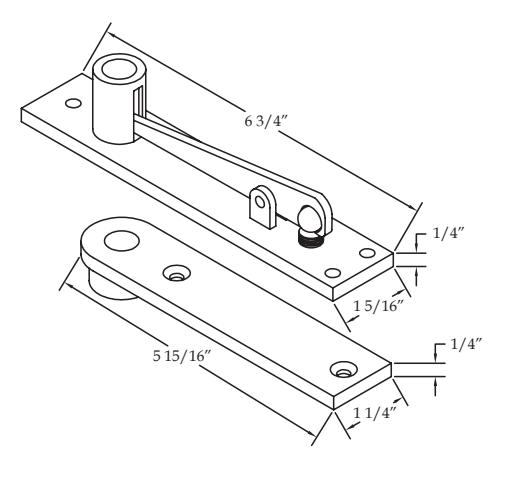

0340 Top Pivot – Center Hung

Standard Features

• •
• Heavy Duty
• Jamb leaf mortises in header
• Door leaf mortises into top of the door
• Dress plate provided for jamb portion
• Non-handed
• Pivot point must be plumb with pivot point at the bottom of door

Options

• • EXTP Extended Pin on top pivot (up to ¾" longer than standard)
• • SEC Security fasteners

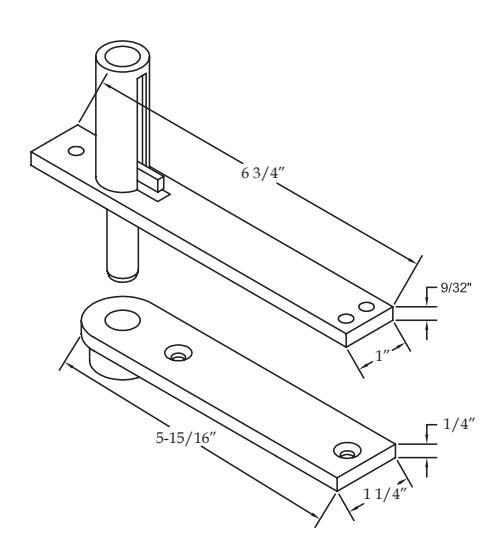

0345 Top Pivot – Center Hung

Standard Features

• For use with 0370 bottom pivot when door height is in excess of 104"
• Extra heavy duty
• Jamb leaf mortises in header
• Door leaf mortises into top of the door
• Dress plate provided for jamb portion
• Non-handed
• Pivot point must be plumb with pivot point at the bottom of door

Options

• • EXTP Extended Pin on top pivot (up to ¾" longer than standard)
• • SEC Security fasteners
