Pivots & Pivot Sets

Center Hung Top Pivots

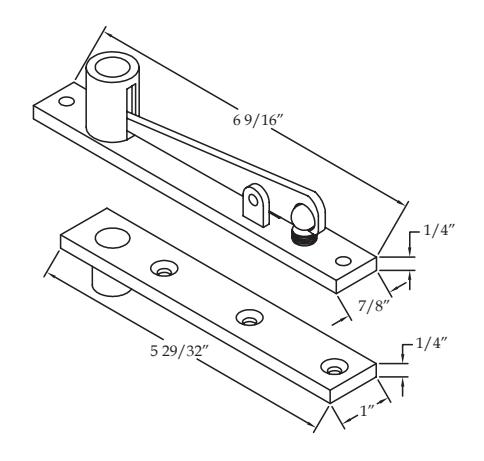

0320 Top Pivot – Center Hung

Standard Features

• •
• Medium Duty
• Jamb leaf mortises in header
• Door leaf mortises into top of the door
• Dress plate provided for jamb portion
• Non-handed
• Pivot point must be plumb with pivot point at the bottom of door

Options

• • EXTP Extended Pin on top pivot (up to ¾" longer than standard)
• • SEC Security fasteners

0321 Top Pivot – Center Hung

Standard Features

• •
• Light duty
• Jamb leaf mortises in header
• Door leaf mortises into top of the door
• Non-handed
• Pivot point must be plumb with pivot point at the bottom of door

1/4" 1/4" 7/8" 4 7/8" 4 3/8" 1"

Options

• • EXTP Extended Pin on top pivot (up to ¾" longer than standard)
• • SEC Security fasteners
