0195 Template – 3by4 Offset Top and Bottom Pivot Set, Heavy Duty
Open the original PDF document
View PDF0195 PIVOT SET, 3/4" OFFSET, HANDED

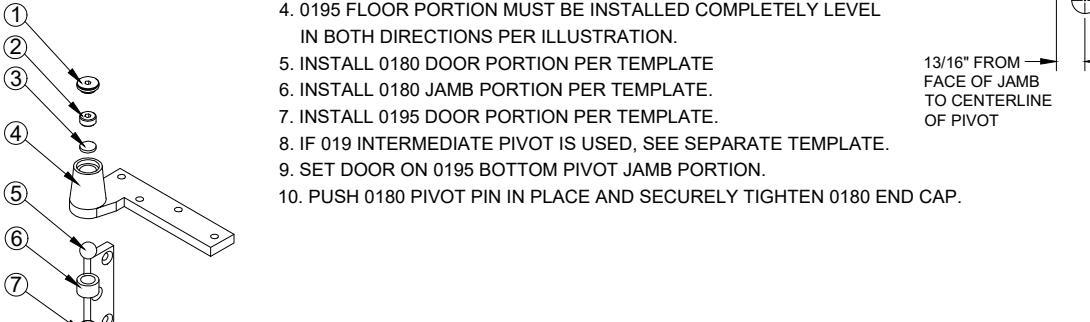

INSTALLATION INSTRUCTIONS
- 1. MEASURE 13/16" OUT FROM DOOR JAMB
- 2. ALLOW 1/8" MIN CLEARANCE FROM DOOR STOP TO DOOR FACE. MEASURE DOOR THICKNESS AND ADD 3/4".
- 3. WHERE THESE LINES INTERSECT DETERMINES THE CENTERI INF OF THE PIVOT POINT
- 4. 0195 FLOOR PORTION MUST BE INSTALLED COMPLETELY LEVEL
1/8" MIN. CLEARANCE
FROM FACE OF DOOR
TO DOOR STOP
RIGHT HANDED DOOR
3/4" FROM FACE OF DOOR TO CENTERLINE OF PIVOT

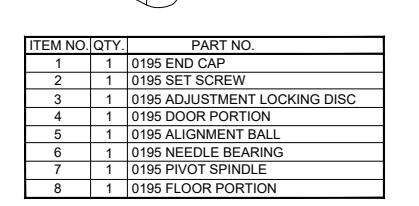

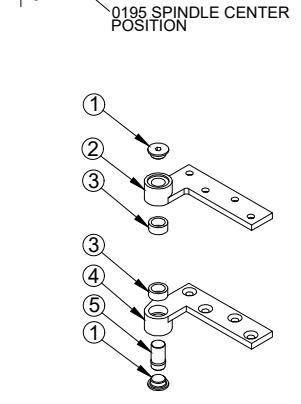

| ITEM NO. | QTY. | PART NO. |
|---|---|---|
| 1 | 2 | 0180 END CAP |
| 2 | 1 | 0180 JAMB PORTION |
| 3 | 2 | 0180 NEEDLE BEARING |
| 4 | 1 | 0180 DOOR PORTION |
| 5 | 1 | 0180 PIVOT PIN |
Disclaimer: This template is to be used for installation, as shown, of said product and is not suitable for every application method. Custom applications, where door sizes, weights and conflicting hardware are a factor, need to be addressed with ABH and proper instructions provided. ABH is not liable for failure or performance of the product due to improper installation methods and/or use. Improper use and/or installation of this product will void the standard warranty.
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
(c) 2020 ABH Mfg., Inc.
0195 PAGE 1 OF 1 REVISED 08-28-20

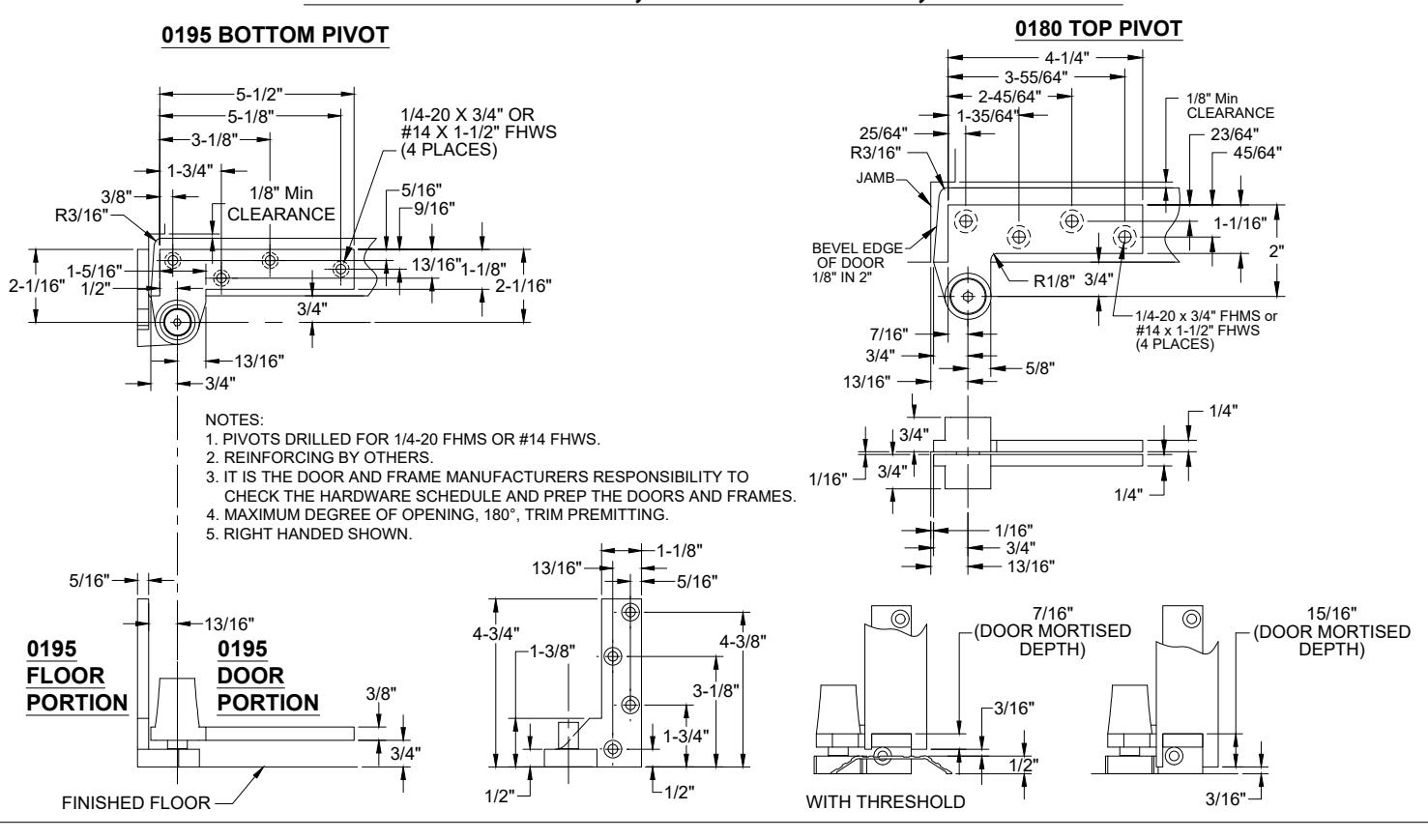

0195-03 DWG
DOOR STOP
BEVEL DOOF 1/8" IN 2"
DOOR JAMB
