Pivots & Pivot Sets

Intermediate Pivots

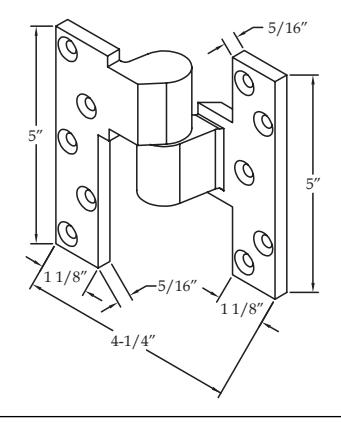

019 Intermediate Pivot - ¾" Offset

Standard Features

• Doors ranging from 60" tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height. (ie, 90" tall door should use two intermediate pivots)
• Mortises into side jamb and hinge edge of door
• Handed Specify LH or RH
• For use with ¾" offset pivot sets
• Helps maintain door alignment
• Standard
• Heavy duty stainless steel needle bearings
• Stainless steel base material

Meets or exceeds ANSI C07321 & C07371

Meets or exceeds

ANSI C07311

L019 Intermediate Pivot - ¾" Offset Standard Features

• Doors ranging from 60" tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height. (ie, 90" tall door should use two intermediate pivots)
• Mortises into side jamb and hinge edge of door
• Handed Specify LH or RH
• • For use with ¾" offset lead-lined pivot sets
• 1-¾" lead-lined doors
• Helps maintain door alignment
• Standard
• Heavy duty stainless steel needle bearings
• Stainless steel base material

5/16" 5" 5" 1 1/4" 5/16" 1 1/4" 4-1/2"

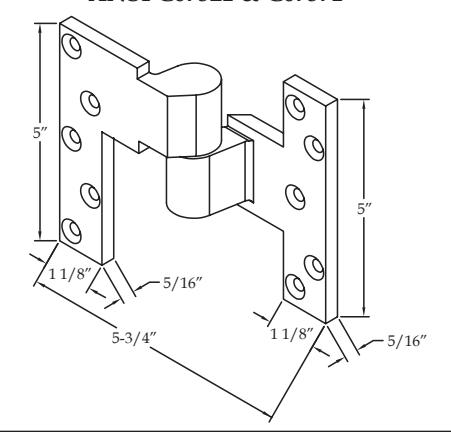

019-1.5 Intermediate Pivot – 1-½" Offset

Standard Features

• Doors ranging from 60" tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height. (ie, 90" tall door should use two intermediate pivots)
• Mortises into side jamb and hinge edge of door
• Handed Specify LH or RH
• For use with 1-½" offset pivot sets
• Helps maintain door alignment
• Standard
• Heavy duty stainless steel needle bearings
• Stainless steel base material

Meets or exceeds ANSI C07321 & C07371
