0180 Template – 3by4 Offset Top Pivot

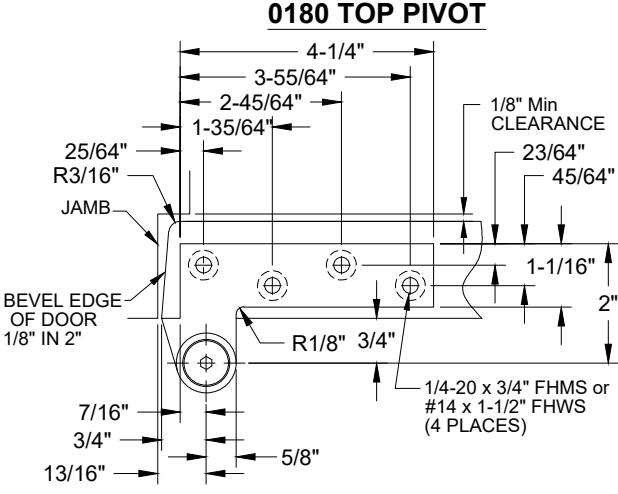

0180 TOP PIVOT, 3/4" OFFSET, NON-HANDED

NOTES:

• 1. PIVOTS DRILLED FOR 1/4-20 x 3/4 FHMS OR #14 x 1-1/2" FHWS.
• 2. REINFORCING BY OTHERS.
• 3. IT IS THE DOOR AND FRAME MANUFACTURERS RESPONSIBILITY TO CHECK THE HARDWARE SCHEDULE AND PREP THE DOORS AND FRAMES
• 4. MAXIMUM DEGREE OF OPENING, 180°, TRIM PREMITTING.

INSTALLATION INSTRUCTIONS

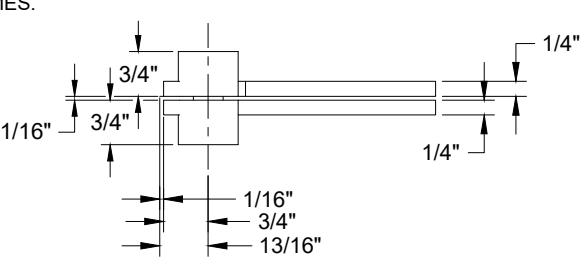

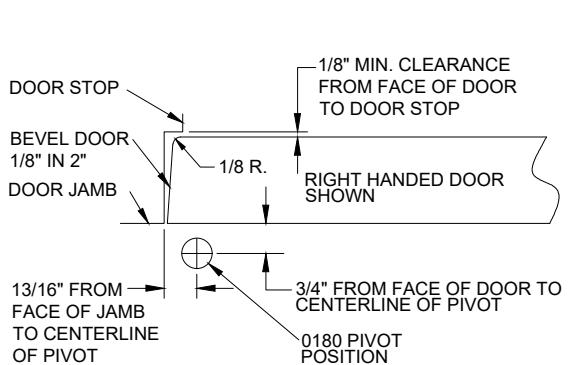

• 1. MEASURE $^\{13\}/\_\{6\}$ " OUT FROM DOOR JAMB.
• 2. ALLOW $\backslash ensuremath\{\backslash \%^\{\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !$
• 3. WHERE THESE LINES INTERSECT DETERMINES THE CENTERLINE OF THE PIVOT POINT.
• 4. INSTALL 0180 DOOR PORTION PER TEMPLATE
• 5. INSTALL 0180 JAMB PORTION PER TEMPLATE.
• 6. PUSH 0180 PIVOT PIN IN PLACE AND SECURELY TIGHTEN 0180 END CAP.

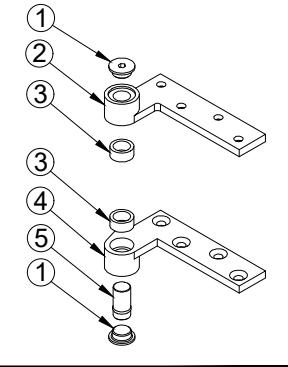

ITEM NO.	QTY.	PART NO.
1	2	0180 END CAP
2	1	0180 JAMB PORTION
3	2	0180 NEEDLE BEARING
4	1	0180 DOOR PORTION
5	1	0180 PIVOT PIN
