0180 Cut Sheet – 3by4 Offset Top Pivot
Open the original PDF document
View PDFPivots & Pivot Sets
Offset Top Pivots

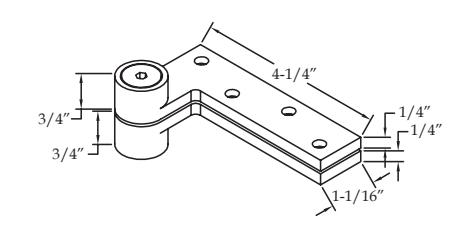

0180 Top Pivot – ¾" Offset
Standard Features
- •
- Mortises into header and top of door
- Non-handed
- Standard
- Heavy duty stainless steel needle bearings
- Stainless steel base material
Options
• SEC – Security fasteners

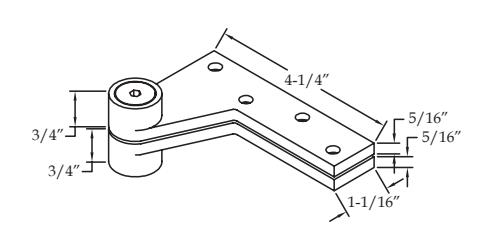

L0180 Top Pivot – ¾" Offset
Standard Features
- •
- Mortises into header and top of door
- Non-handed
- • For use on 1-¾" lead-lined doors
- Standard
- Heavy duty stainless steel needle bearings
- Stainless steel base material
Options
• SEC – Security fasteners

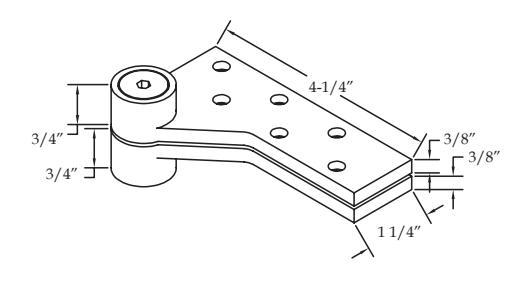

0180-1.5 Top Pivot – 1-½" Offset
Standard Features
- •
- Mortises into header and top of door
- Non-handed
- Standard
- Heavy duty stainless steel needle bearings
- Stainless steel base material
Options
• SEC – Security fasteners
