Pivots & Pivot Sets

Offset Pivot Sets

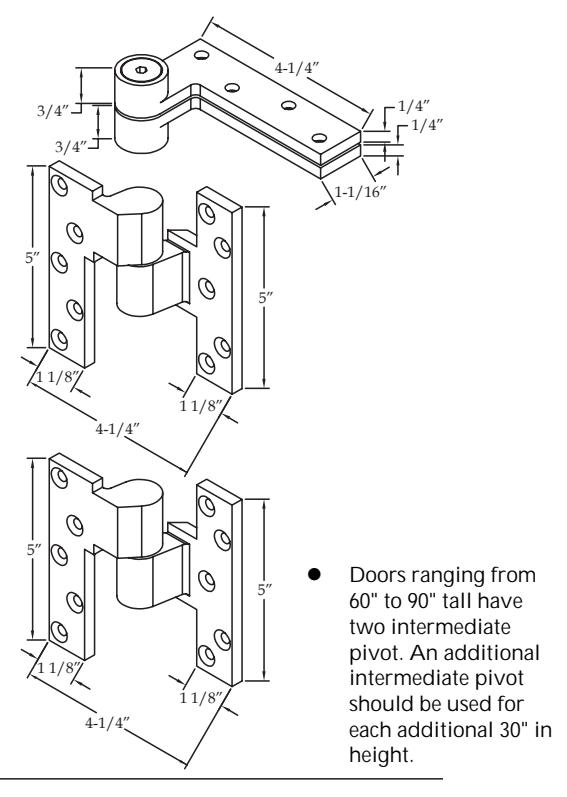

0165 Pivot Set - ¾" Offset

Standard Features

• 0180 Top Pivot
  • Frame leaf mortises into header
  • Door leaf mortises into top of door
• (2) 019 Intermediate Pivots
  • Frame leaves mortise into side jamb
  • Door leaves mortise into side of door
• Handed Specify LH or RH
• •
• Maximum door load 300 pounds
• Maximum door width 42"
• Heavy duty stainless steel needle bearings
• Stainless steel base material

Options

• • EXTP Extended Pin on top pivot (up to ¾" longer than standard)
• • SEC Security fasteners

Meets or exceeds

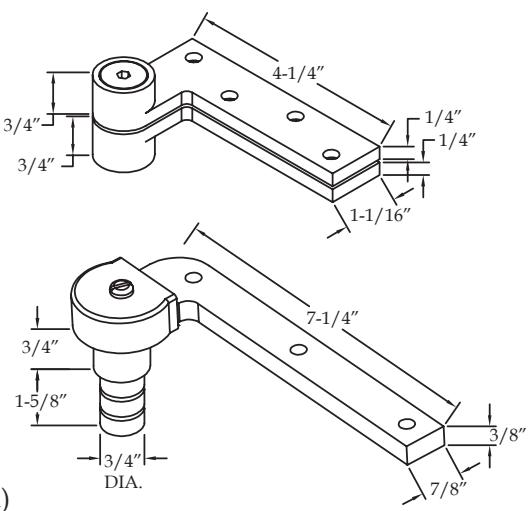

0173 Pivot Set - ¾" Offset

Standard Features

• 0180 Top Pivot
  • Frame leaf mortises into header
  • Door leaf mortises into top of door
• 0173 Bottom Pivot
  • -
  • Door leaf mortises into bottom of door
• Handed Specify LH or RH
• Maximum door load 150 pounds
• Maximum door width 36"
• Heavy duty bearings
• Stainless steel base material

Options

• • EXTP Extended Pin on top pivot (up to ¾" longer than standard)
• • SEC Security fasteners
• • B Bottom pivot only (no top pivot)

Meets or exceeds ANSI C07162/C07202

019 intermediate pivot recommended for all doors over 6'-8" (order seperately)
