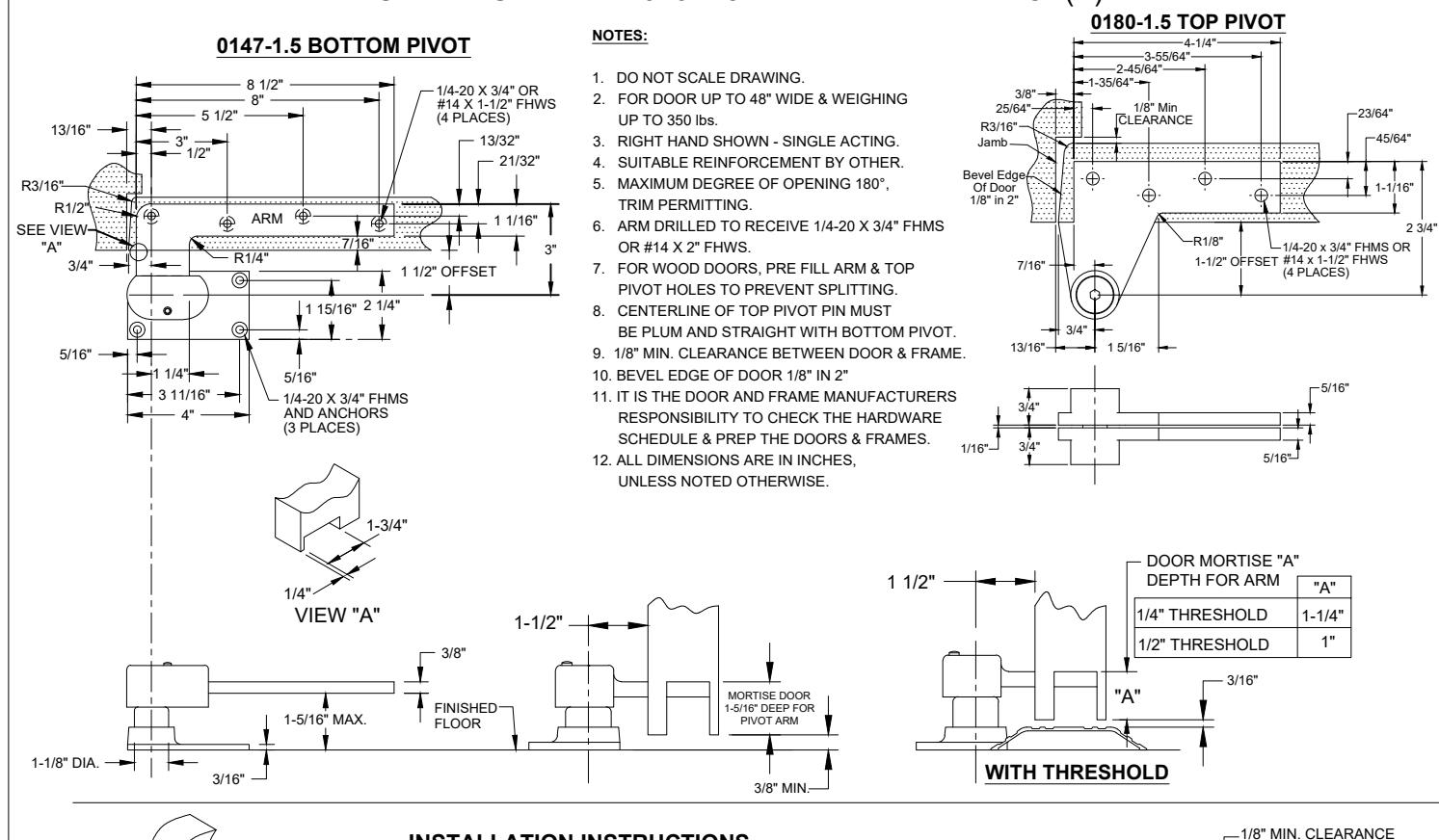

0147-1.5 PIVOT SET, 1-1/2" OFFSET, HANDED

MUST BE USE WITH 019-1.5 INTERMEDIATE PIVOT(S)

  • 1. MEASURE 13/16" OUT FROM DOOR JAMB.
  • 2. ALLOW 1/8" MIN CLEARANCE FROM DOOR STOP TO DOOR FACE. MEASURE DOOR THICKNESS AND ADD 1-1/2".
  • 3. WHERE THESE LINES INTERSECT DETERMINES THE CENTERLINE OF THE PIVOT POINT.
  • FLOOR PORTION MUST BE INSTALLED COMPLETELY LEVEL IN BOTH DIRECTIONS PER ILLUSTRATION #1.
  • 5. INSTALL 0180-1.5 DOOR PORTION PER TEMPLATE
  • 6. INSTALL 0180-1.5 JAMB PORTION PER TEMPLATE.
  • 7. INSTALL 0147-1.5 DOOR PORTION PER TEMPLATE.
  • 8. IF 019-1.5 INTERMEDIATE PIVOT IS USED. SEE 019-1.5 TEMPLATE
  • 9. SET DOOR ON 0147-1.5 FLOOR PORTION BEARING.
  • 10. PUSH 0180 PIVOT PIN IN PLACE AND SECURELY TIGHTEN 0180 END CAP.
  • 11. IF DOOR DRAGS AT FLOOR (OR THRESHOLD, IF USED) LOOSEN SET SCREW AND RAISE DOOR TO DESIRED CLEARANCE AND INSERT 1/16" THICK SHIM. RE TIGHTEN SET SCREW SECURELY.
  • 12. PUT 0147 COVER ON AND SECURE TIGHTLY WITH 0147 COVER SCREW.

DOOR STOP

BEVEL DOOF 1/8" IN 2"

DOOR JAMB

13/16" FROM -

OF PIVOT

FACE OF JAMB

TO CENTERLINE

FROM FACE OF DOOR

TO DOOR STOP

RIGHT HANDED DOOR

1-1/2" FROM FACE OF DOOR TO CENTERLINE OF PIVOT

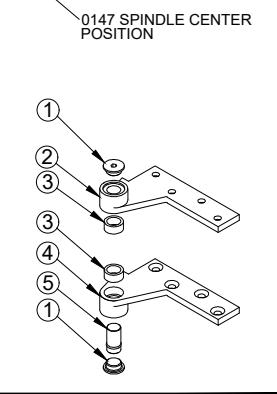

ITEM NO. QTY. PART NO.
1 2 0180 END CAP
2 1 0180-1.5 JAMB PORTION
3 2 0180 NEEDLE BEARING
4 1 0180-1.5 DOOR PORTION
5 1 0180 PIVOT PIN

Disclaimer: This template is to be used for installation, as shown, of said product and is not suitable for every application method. Custom applications, where door sizes, weights and conflicting hardware are a factor, need to be addressed with ABH and proper instructions provided. ABH is not liable for failure or performance of the product due to improper installation methods and/or use. Improper use and/or installation of this product will void the standard warranty.

SHIM SNAPS

PORTION

BETWEEN 0147

PIVOT SPINDLE

AND 0147 DOOR

DOOF

6

(5)

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

0147-1.5-04.DWG
