Pivots & Pivot Sets

Offset Pivot Sets

0147 Pivot Set - ¾" Offset

Standard Features

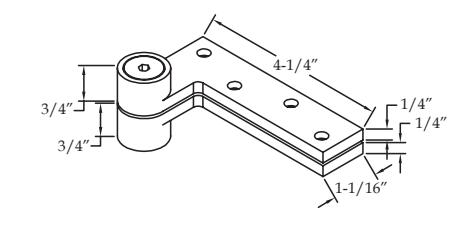

• 0180 Top Pivot
  • Frame leaf mortises into header
  • Door leaf mortises into top of door

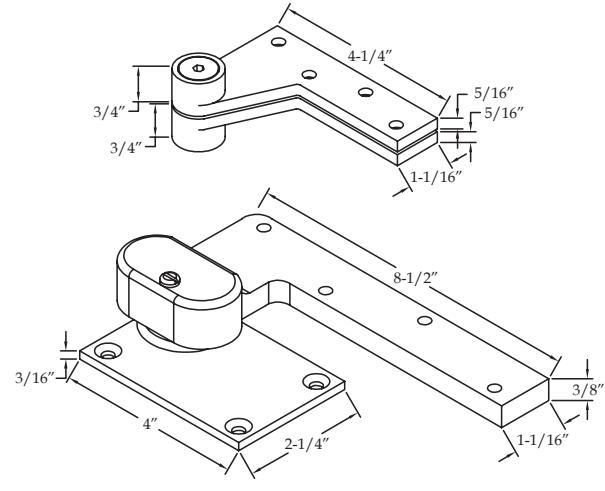

• 0147 Bottom Pivot
  • -
  • Door leaf mortises into bottom of door
• Handed Specify LH or RH
• Maximum door load 600 pounds
• Maximum door width 48"
• Standard
• Heavy duty bearings
• Stainless steel base material

Options

• • EXTS Extended Spindle on bottom pivot (up to 2" longer than standard)
• • EXTP Extended Pin on top pivot (up to 3/4" longer than standard)
• • SEC Security fasteners
• • B Bottom pivot only (no top pivot)

Meets or exceeds ANSI C07162 & C07202

• 019 intermediate pivot required (order seperately)
• Doors ranging from 60" to 90" tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in height.

0147-1.5 Pivot Set - 1-½" Offset

Standard Features

• 0180-1.5 Top Pivot
  • Frame leaf mortises into header
  • Door leaf mortises into top of door

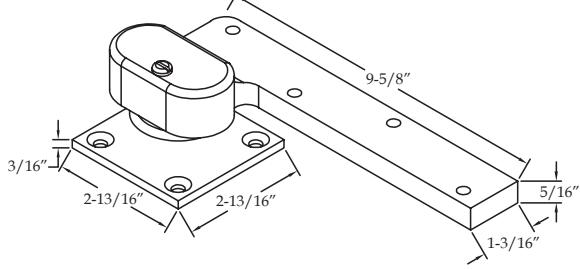

• 0147-1.5 Bottom Pivot
  • -
  • Door leaf mortises into bottom of door
• Handed Specify LH or RH
• Maximum door load 350 pounds
• Maximum door width 48"
• Standard
• Heavy duty bearings
• Stainless steel base material

Options

• • EXTS Extended Spindle on bottom pivot (up to 2" longer than standard)
• • EXTP Extended Pin on top pivot (up to ¾" longer than standard)
• • SEC Security fasteners
• • B Bottom pivot only (no top pivot)

Meets or exceeds ANSI C07162 & C07202

• 019-1.5 intermediate pivot required (order seperately)
• Doors ranging from 60" to 90" tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in height.
