Pivots & Pivot Sets

Center Hung Pivots Sets

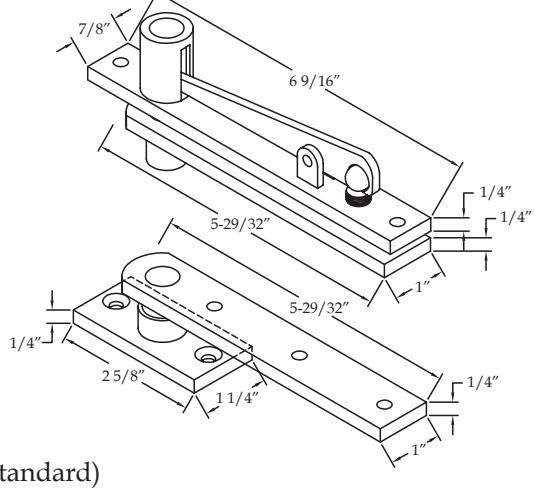

0127 Pivot Set – Center Hung Standard Features

• 0320 Top Pivot
  • Frame leaf mortises into header
  • Door leaf mortises into top of door
• 0127 Bottom Pivot
  • -
  • Door leaf mortises into bottom of door
• Non-handed
• Pivot set is centered into the door thickness
• Maximum door load 200 pounds
• Maximum door size 42"x 102"

Options

• Can be used with ABH® Rescue Hardware see Section "J"
• • EXTS Extended Spindle on bottom pivot (up to 2" longer than standard)
• • EXTP Extended Pin on top pivot (up to ¾" longer than standard)
• • SEC Security fasteners
• • B Bottom pivot only (no top pivot)

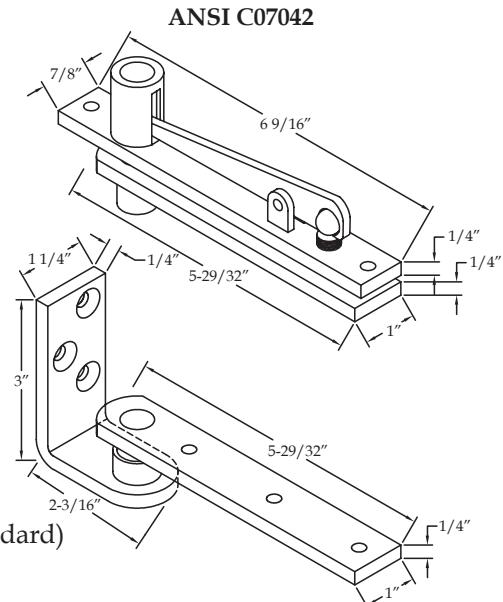

0128 Pivot Set – Center Hung Standard Features

• 0320 Top Pivot
  • Frame leaf mortises into header
  • Door leaf mortises into top of door
• 0128 Bottom Pivot
  • -
  • Door leaf mortises into bottom of door
• Non-handed
• Pivot set is centered into the door thickness
• Maximum door load 250 pounds
• Maximum door size 42"x 102"

Options

• Can be used with ABH® Rescue Hardware see Section "J"
• • EXTS Extended Spindle on bottom pivot (up to 2" longer than standard)
• • EXTP Extended Pin on top pivot (up to ¾" longer than standard)
• • SEC Security fasteners
• • B Bottom pivot only (no top pivot)

Meets or exceeds

Meets or exceeds ANSI C07032
