0127 Center Hung Top and Bottom Pivot Set, Medium Duty, Side Jamb Mount – Template

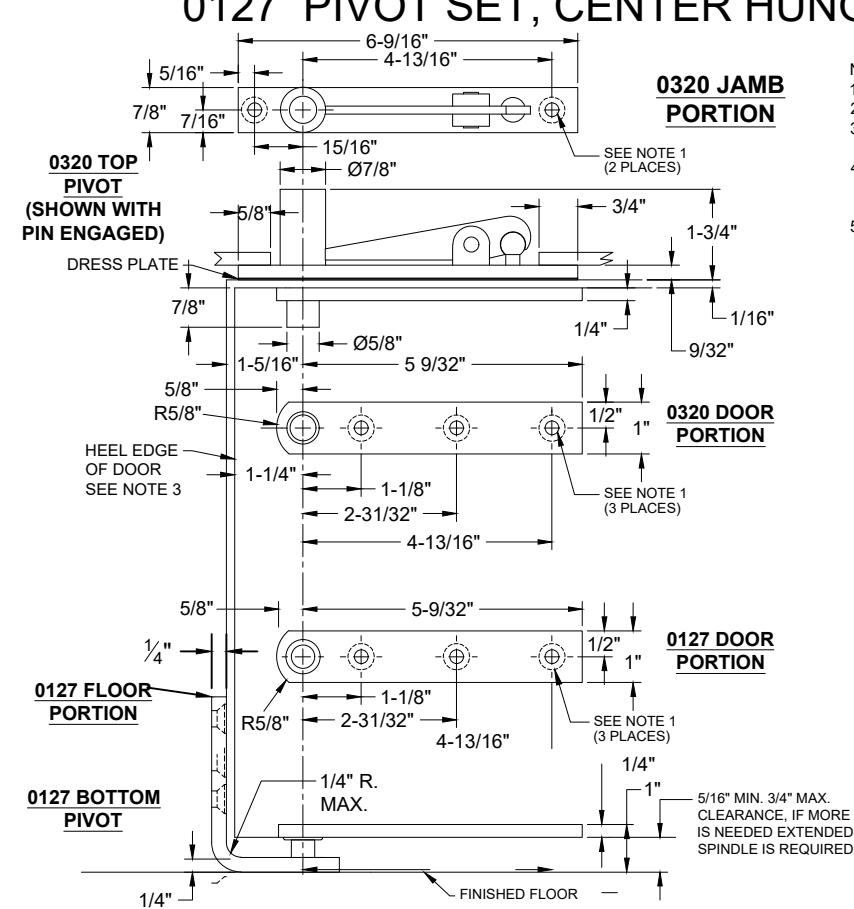

0127 PIVOT SET, CENTER HUNG, NON-HANDED

NOTES

• 1. PIVOTS DRILLED FOR 1/4-20 x 3/4" FHMS OR #14 x 1-1/2" FHWS
• 2. REINFORCING BY OTHERS

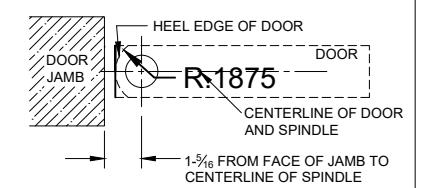

• 3. RADIUS HEEL EDGE OF DOOR 1-1/4" MAX FOR 1-3/8" TO 2-1/2" THICK DOORS.
• 4. IT IS THE DOOR AND FRAME MANUFACTURERS RESPONSIBILITY TO CHECK THE HARDWARE SCHEDULE AND PREP THE DOORS AND FRAMES
• 5. CENTERLINE OF TOP PIVOT PIN MUST BE PLUMB AND STRAIGHT WITH BOTTOM PIVOT.

5/8'

1-1/4"

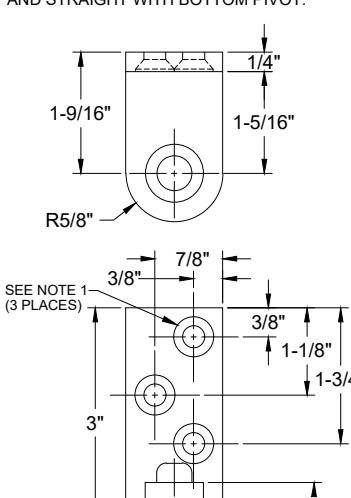

0127 FLOOR PORTION

• 3. INSTALL 0127 DOOR PORTION PER TEMPLATE

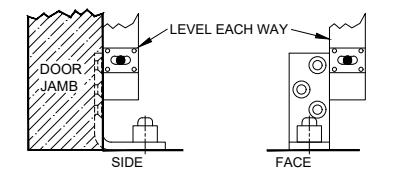

• 4. MORTISE JAMB AND INSTALL 0127 FLOOR PORTION PER TEMPLATE.
• 5. INSTALL 0320 DOOR PORTION PER TEMPLATE.
• 6. INSTALL 0320 JAMB PORTION PER TEMPLATE.
• CENTERLINE OF PIVOT SHOULD ALIGN WITH CENTERLINE OF BOTTOM SPINDLE. USE A PLUMB LINE TO ASSURE ACCURACY.
• 8. SET INSTALLED 0127 DOOR PORTION ON 0127 FLOOR PORTION SPINDLE.

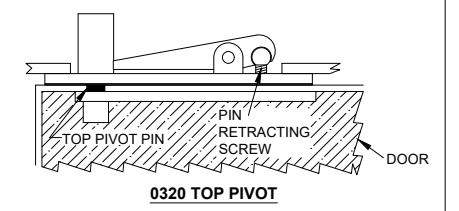

• ENGAGE THE TOP PIVOT PIN BY TURNING PIN RETRACTING SCREW CLOCKWISE.
• 10. FASTEN 0320 DRESS PLATE TO 0320 JAMB PORTION.

DISMOUNT DOOR (IF REQUIRED)

• 1. OPEN THE DOOR ENOUGH TO DISENGAGE THE TOP PIVOT.
• 2. ROTATE THE DOOR TO CLOSED POSITION.
• WITH THE TOP OF THE DOOR LEANING TOWARD YOU, LIFT THE DOOR CLEAR OF THE SPINDLE.

43/64'

Disclaimer: This template is to be used for installation, as shown, of said product and is not suitable for every application method. Custom applications, where door sizes, weights and conflicting hardware are a factor, need to be addressed with ABH and proper instructions provided. ABH is not liable for failure or performance of the product due to improper installation methods and/or use. Improper use and/or installation of this product will void the standard warranty.

0320 JAMB PORTION

0127 DOOR PORTION

0320 DRESS PLATE SCREW 0320 DOOR PORTION

(1)

(3)

4

(5)

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

0127-07.DWG
