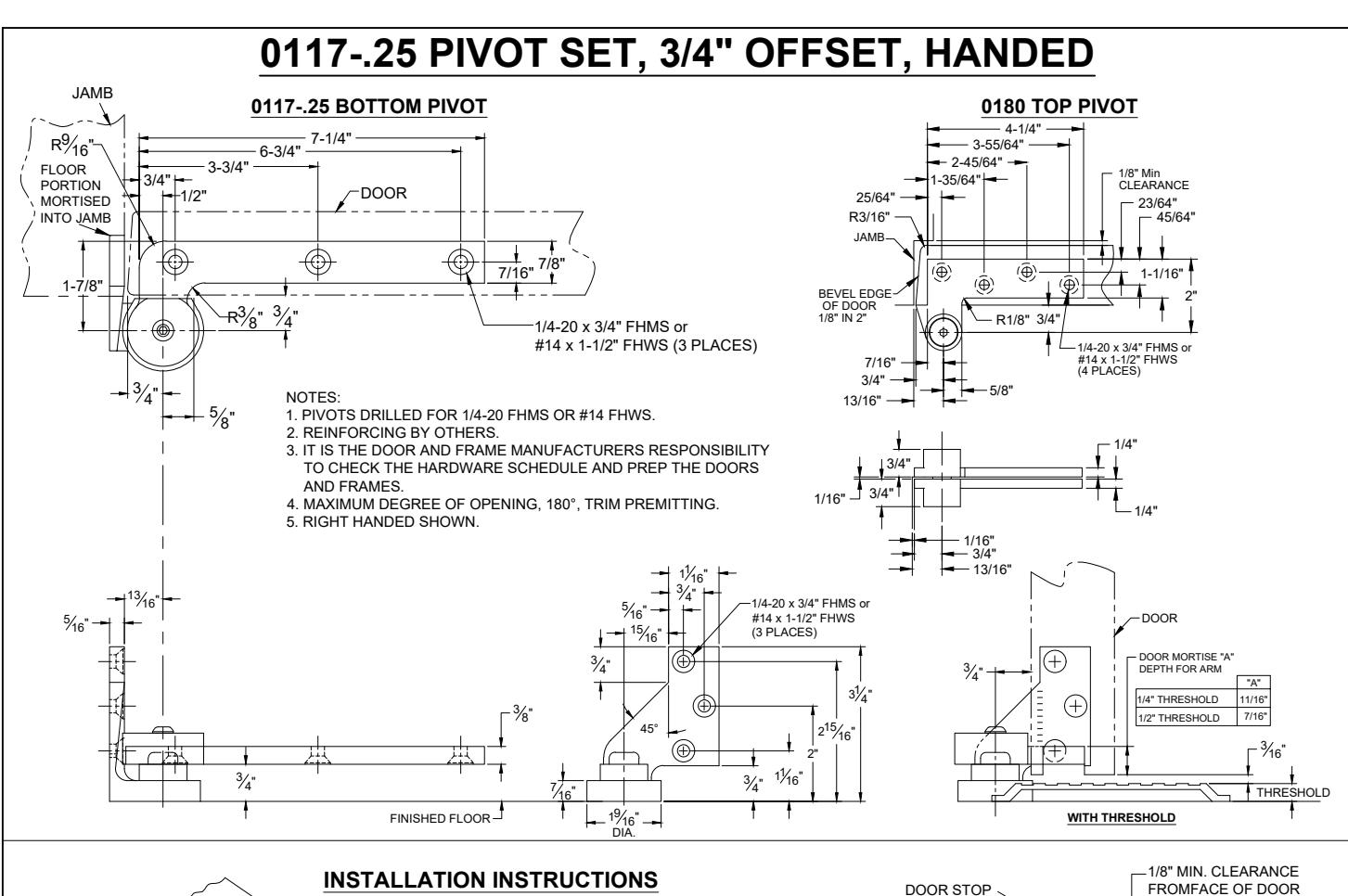

0117 1by4 3by4 Offset Top and Bottom Pivot Set – Template
Open the original PDF document
View PDF

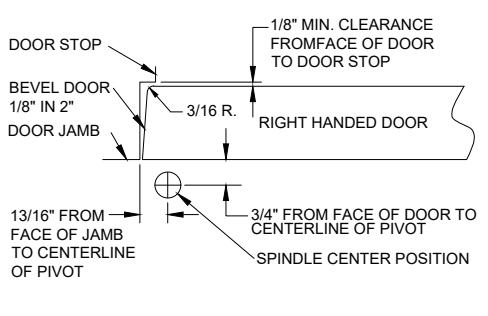

- 1. MEASURE 13/16" OUT FROM DOOR JAMB.
- 2. ALLOW 1/8" MIN CLEARANCE FROM DOOR STOP TO DOOR FACE. MEASURE DOOR THICKNESS AND ADD 3/4".
- 3. WHERE THESE LINES INTERSECT DETERMINES THE CENTERLINE OF THE PIVOT POINT.
- 4. FLOOR PORTION MUST BE INSTALLED COMPLETELY LEVEL IN BOTH DIRECTIONS PER ILLUSTRATION.
- 5. INSTALL 0180 DOOR PORTION PER TEMPLATE

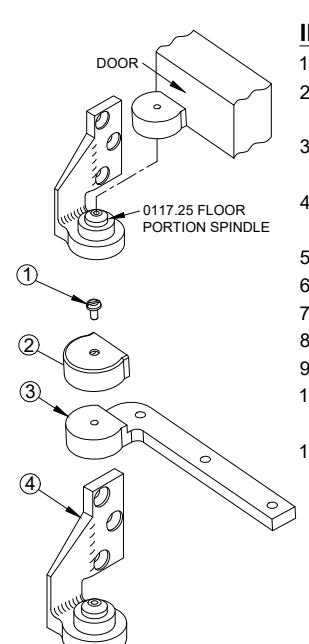

- 6. INSTALL 0180 JAMB PORTION PER TEMPLATE
- 7. INSTALL 0117.25 DOOR PORTION PER TEMPLATE.
- 8. IF 019 INTERMEDIATE PIVOT IS USED, SEE SEPARATE TEMPLATE.
- 9. SET DOOR ON 0117.25 FLOOR PORTION SPINDLE.
- 10. PUSH 0180 PIVOT PIN IN PLACE AND SECURELY TIGHTEN 0180
- 11. PUT 0117.25 ARM COVER ON AND SECURE TIGHTLY WITH 0117.25 COVER SCREW.
| ITEM NO. | QTY. | PART NO. |
| 1 | 2 | 0180 END CAP |
| 2 | 1 | 0180 JAMB PORTION |
| 3 | 2 | 0180 NEEDLE BEARING |
| 4 | 1 | 0180 DOOR PORTION |
| 5 | 1 | 0180 PIVOT PIN |
Disclaimer: This template is to be used for installation, as shown, of said product and is not suitable for every application method. Custom applications, where door sizes, weights and conflicting hardware are a factor, need to be addressed with ABH and proper instructions provided. ABH is not liable for failure or performance of the product due to improper installation methods and/or use. Improper use and/or installation of this product will void the standard warranty.
0117 DOOR PORTION
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143
630.875.9900; FAX 800.9FAXABH (932.9224)
© 2020 ABH Mfg., Inc. printed in USA
0117.25-03.DWG
0117.25
PAGE 1 OF 1 REVISED 08-27-20
