CUSTOM SCRM4590 DOUBLE-LIPPED STRIKE & RESCUE STOP COMBO

1-3/4" THICK DOOR
1/8" INSET DOOR
SCHLAGE MORTISE LOCK W / DEAD BOLT

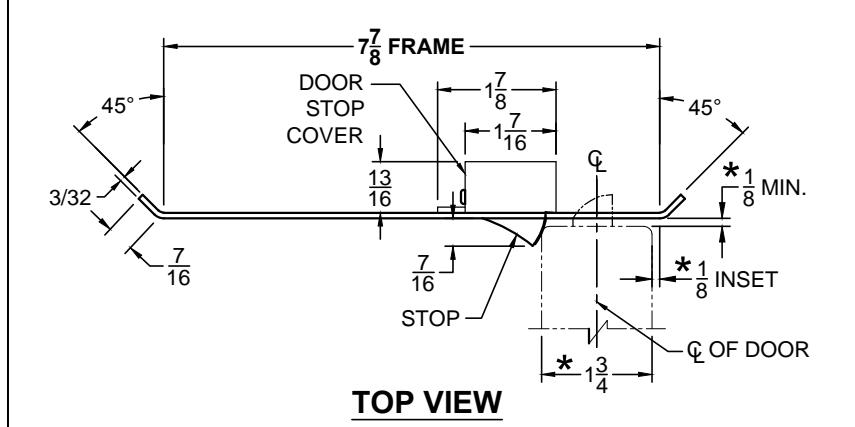

7-7/8" FRAME

STOP IS SPRING LOADED MAKING PART NON-HANDED BUT INSTALLATION IS STILL HANDED

ABH DOOR STOP COVER DIMENSIONS MAY NOT MATCH OTHER MANUFACTURERS

CUT-OUT FOR METAL JAMB

NOTE:

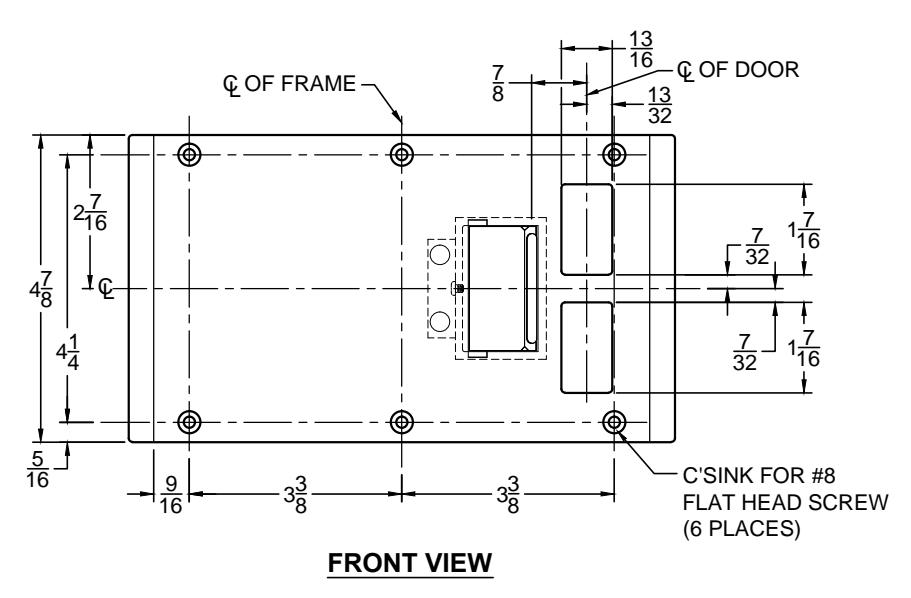

1. HORIZONTAL CENTERLINE OF PLATE TO MATCH HORIZONTAL CENTERLINE OF CUTOUT.
2. SCREWS- 8-32 X 3/8" UNDERCUT F.H.M.S.
3. R.H. DOOR SHOWN, L.H. OPPOSITE (RESCUE STOP IS NON HANDED)
4. DO NOT SCALE DRAWING.
5. FOR CUSTOM RESCUE DOOR STOP CONSULT FACTORY.

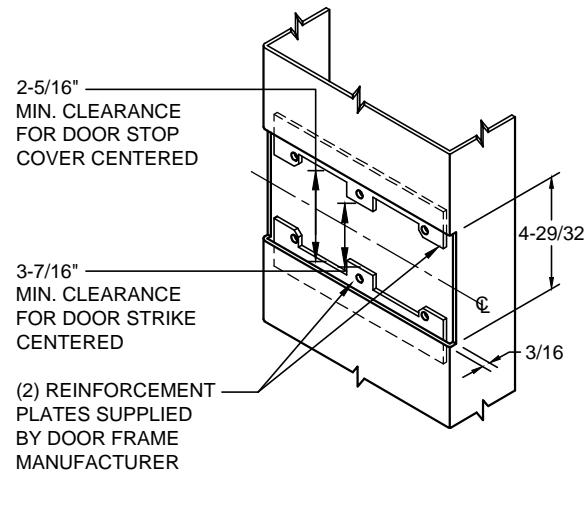

REINFORCEMENT:

WHEN INSTALLING IN METAL FRAME, REINFORCEMENT IS NEEDED WITH THIS PRODUCT, CUSTOMER OR MANUFACTURER TO SUPPLY FRAME REINFORCEMENT WITH LATCH BOLT CLEARANCE.

* = CRITICAL DIMENSION MUST BE FOLLOWED

SP-CR4593 7.875 x 4.875 SCHLAGE .DWG

SP-CR4593

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural Builders Hardware Mfg., Inc. Architectural

1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

ISSUED 12-21-16
