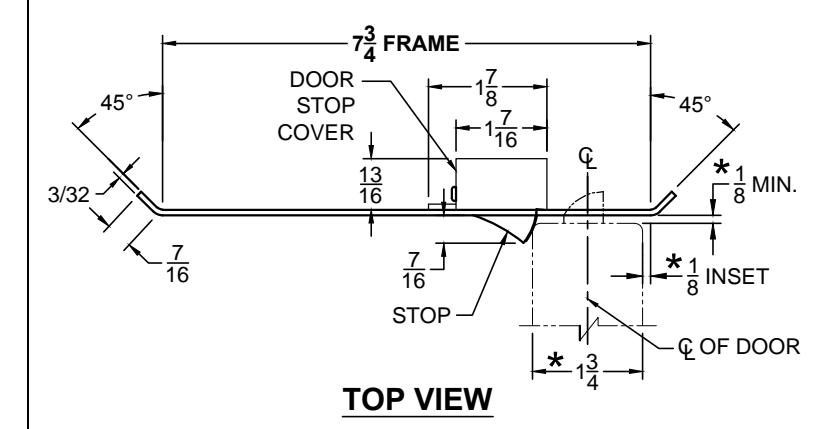

CUSTOM SCRM4590 DOUBLE-LIPPED STRIKE & RESCUE STOP COMBO

  • 1-3/4" THICK DOOR
  • 1/8" INSET DOOR
  • SCHLAGE MORTISE LOCK W / DEAD BOLT
  • 7-3/4" FRAME

STOP IS SPRING LOADED MAKING PART NON-HANDED BUT INSTALLATION IS STILL HANDED

ABH DOOR STOP COVER DIMENSIONS MAY NOT MATCH OTHER MANUFACTURERS

CUT-OUT FOR METAL JAMB

NOTE:

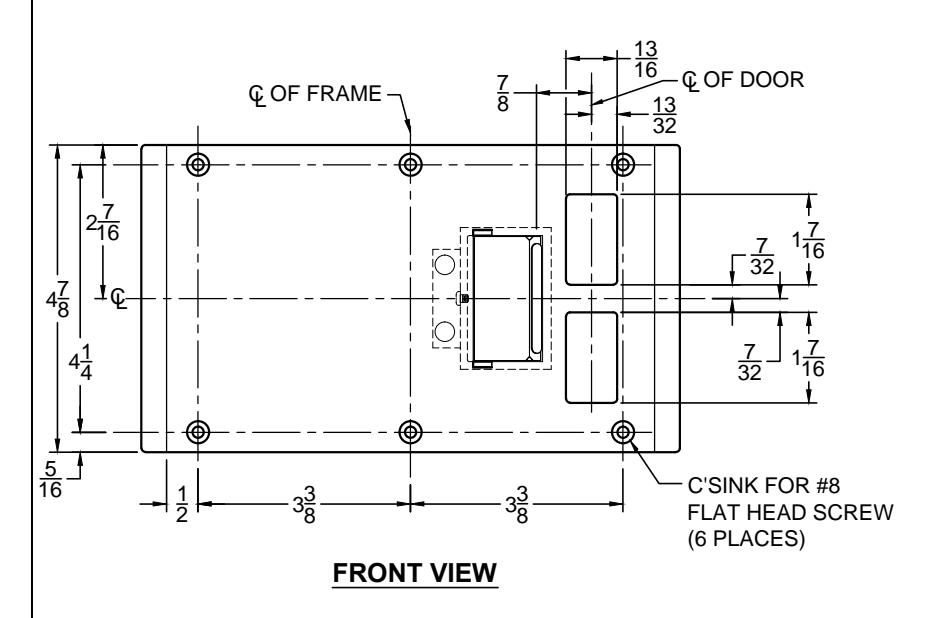

  • 1. HORIZONTAL CENTERLINE OF PLATE TO MATCH HORIZONTAL CENTERLINE OF CUTOUT.
  • 2. SCREWS- 8-32 X 3/8" UNDERCUT F.H.M.S.
  • 3. R.H. DOOR SHOWN, L.H. OPPOSITE (RESCUE STOP IS NON HANDED)
  • 4. DO NOT SCALE DRAWING.
  • 5. FOR CUSTOM RESCUE DOOR STOP CONSULT FACTORY.

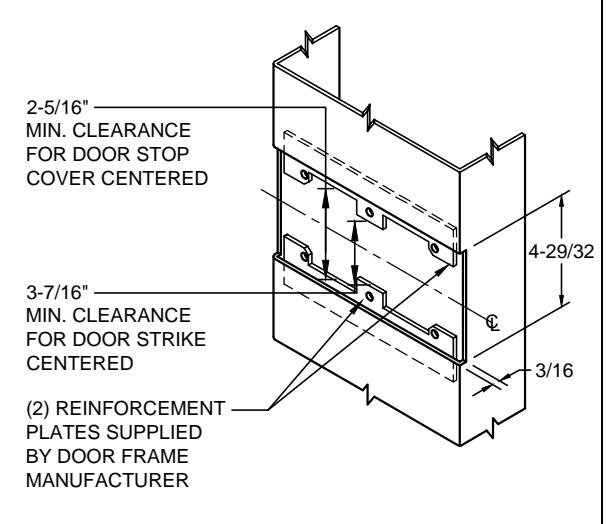

REINFORCEMENT:

WHEN INSTALLING IN METAL FRAME, REINFORCEMENT IS NEEDED WITH THIS PRODUCT, CUSTOMER OR MANUFACTURER TO SUPPLY FRAME REINFORCEMENT WITH LATCH BOLT CLEARANCE.

* = CRITICAL DIMENSION MUST BE FOLLOWED

SP-CR4592 7.750 x 4.875 SCHLAGE .DWG

SP-CR4592

® www.abhmfg.com E-mail: abhinfo@abhmfg.com

Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

© 2016 ABH Mfg., Inc. printed in USA

ISSUED 12-21-16
