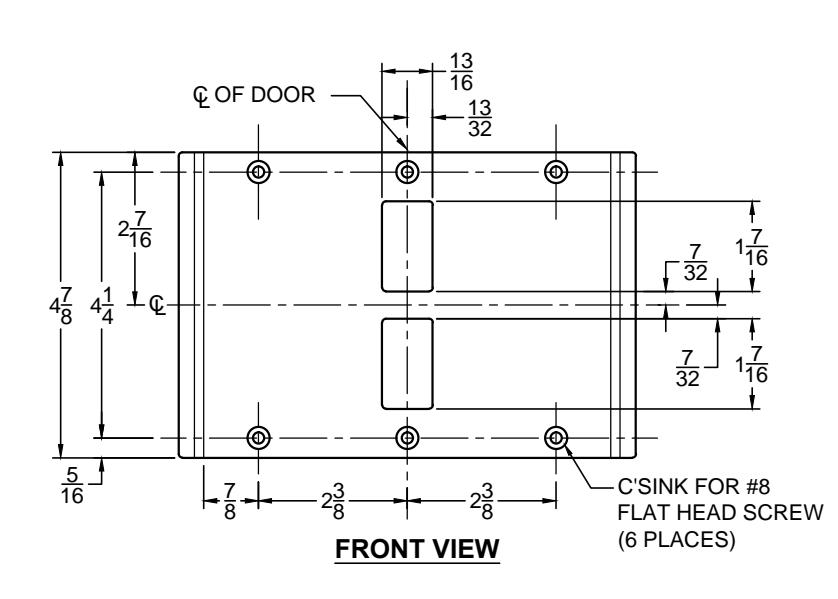

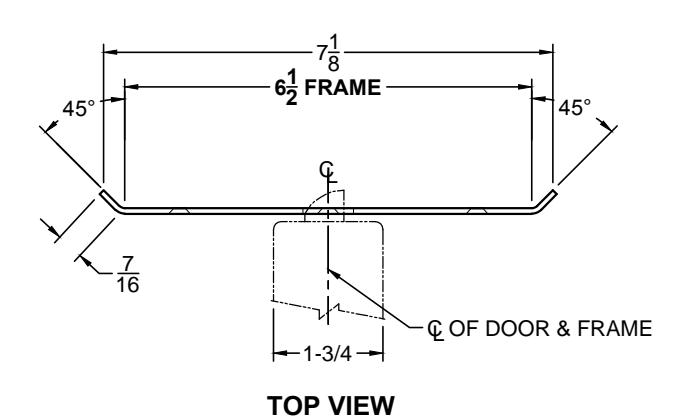

CUSTOM SDSM4500 DOUBLE-LIPPED STRIKE

  • 1-3/4" THICK DOOR
  • CENTER HUNG DOOR
  • SCHLAGE MORTISE LOCK W / DEAD BOLT
  • 6-1/2" FRAME

NOTE:

  • 1. HORIZONTAL CENTERLINE OF PLATE TO MATCH HORIZONTAL CENTERLINE OF CUTOUT.
  • 2. SCREWS- 8-32 X 3/8" UNDERCUT F.H.M.S.
  • 3. R.H. DOOR SHOWN, L.H. OPPOSITE (STRIKE IS NON HANDED)
  • 4. DO NOT SCALE DRAWING.
  • 5. FOR CUSTOM DOUBLE LIPPED STRIKE CONSULT FACTORY.

REINFORCEMENT:

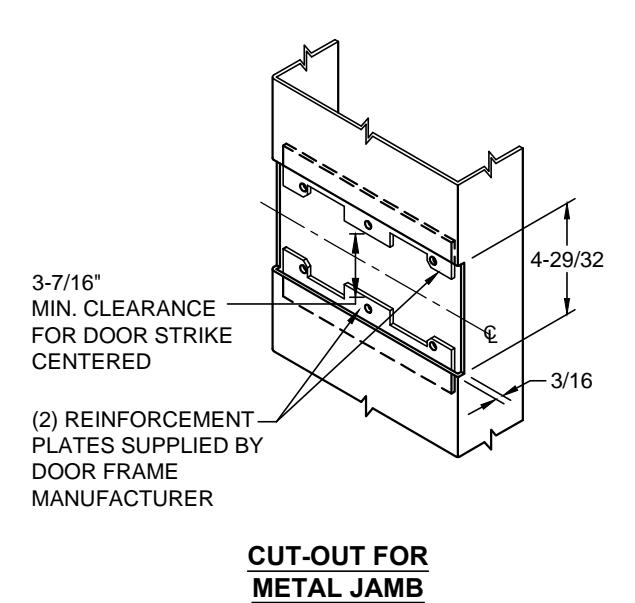

WHEN INSTALLING IN METAL FRAME, REINFORCEMENT IS NEEDED WITH THIS PRODUCT, CUSTOMER OR MANUFACTURER TO SUPPLY FRAME REINFORCEMENT WITH LATCH BOLT CLEARANCE.
